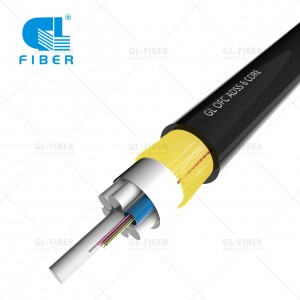

6 Core ADSS Fiber Optical Cable Single Jacket 100M SPAN SM G652D

GL Mini-Span All-Dielectric Self Supporting (ADSS) fiber optic cable is designed for outside plant aerial and duct applications in local and campus network loop architectures. Mini-Span includes fiber counts up to 144 optical fibers and any type of combination of single-mode and laser-optimized multimode fibers with the cable.

Model: 6 Core Single Jacket ADSS Cable;
Fiber Type: ITU G652D, G657A, OM1, OM2, OM3, OM4;
Span: 50M ~150M;
Standard: IEC 60794-4、 IEC 60793、TIA/EIA 598 A;
Certification: ISO9001

Send email to us Open Whats App

Description

Specification

Package & Shipping

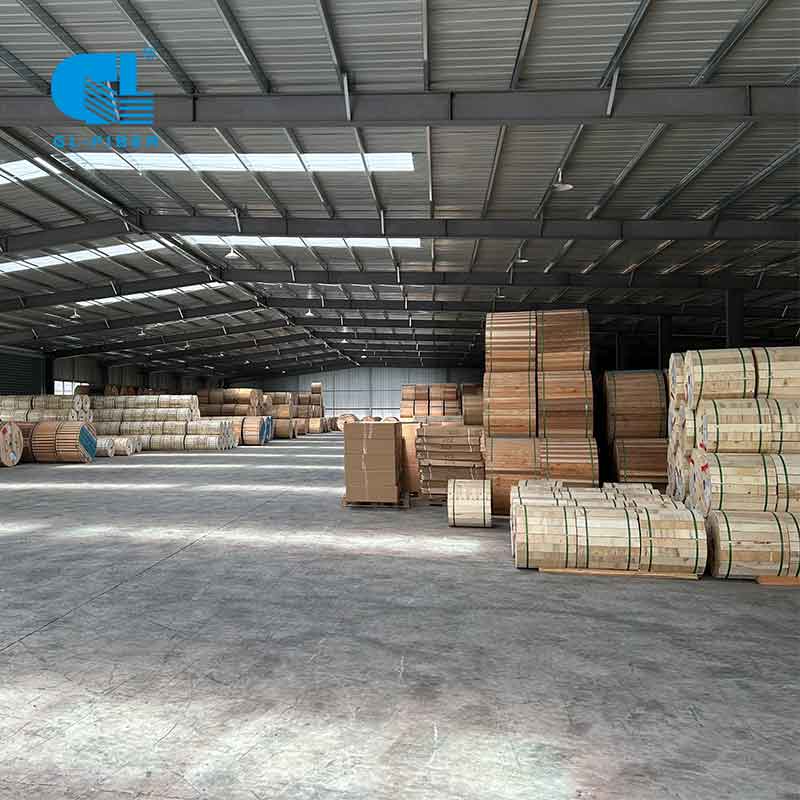

Factory Show

Leave Your Feedback

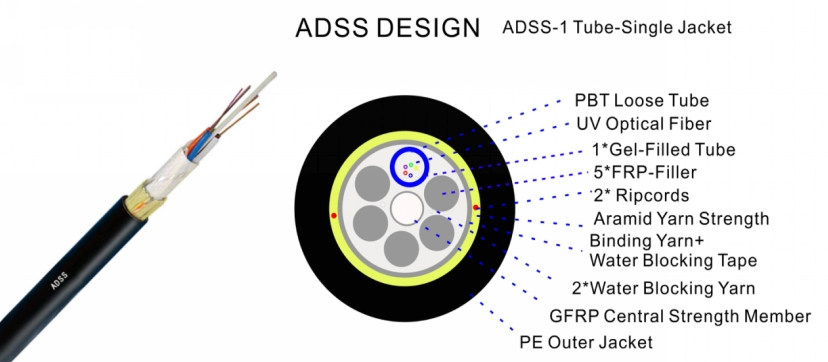

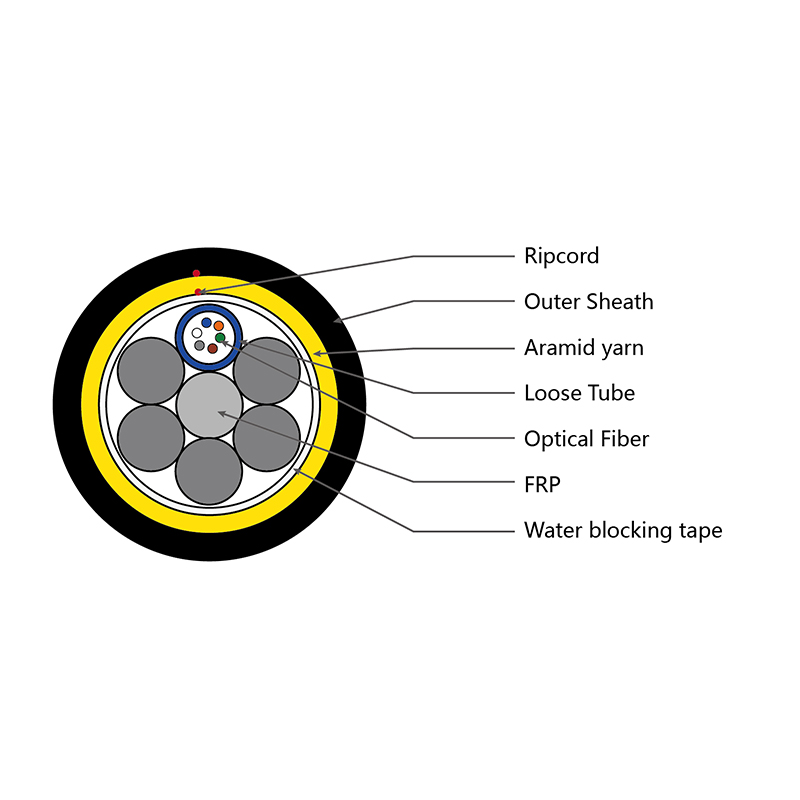

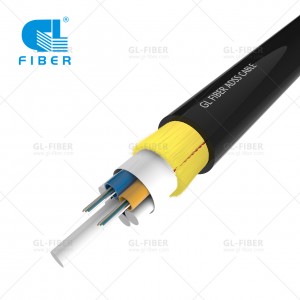

Structure Design:

Main Features:

1. Suitable for use on distribution and high voltage transmission lines with mini spans or self supporting installation for telecommunication；
2. Track -Resistant outer jacket available for the high voltage (≥35KV); HDPE outer jacket available for the high voltage (≤35KV)；
3. Excellent AT performance. The maximum inductive at the operating point of AT jacket can reach 25kV.
4. Gel-Filled buffer tubes are S-Z stranded;
5. Can be installed without shutting off the power.
6. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
7. Good performance of tensile strength and temperature.
8. The design life span is over 30 years.

Standards:

GL Fiber's ADSS Fiber Optical Cable complies with IEC 60794-4, IEC 60793, TIA/EIA 598 A standards.

Advantages of ADSS Optical Fiber Cable:

1.Good aramid yarn have excellent tensile performance;
2.Fast delivery, 200km ADSS cable regular production time about 10 days;
3.Can using glass yarn instead of aramid to anti rodent.

Colors -12 Chromatography：

Fiber Optic Characteristics:

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.00 dB/km	≤0.00dB/km
	@1550nm	≤0.00 dB/km	≤0.00dB/km
Bandwidth（Class A）	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth（Class A）	@1300nm			≥500 MHz·km	≥500 MHz·km
Numerical aperture				0.200±0.015NA	0.275±0.015NA
Cable Cutoff Wavelength		≤1260nm	≤1480nm

Typical Technical Parameter of ADSS Cable:

Technical Data

Item

Contents

Fibers

Fibre Count

6|12|24

144

288

Loose Tube

Tubes* Fbres/Tube

1x6 | 2x6
4x6

6x 8
4x12

6x12

8x12

12x12

24x12

Outer diameter (mm)

1.8

2.0

2.5

Adjustable (OEM)

1.5|2.0

1.8|2.3

2.1|2.3

Central strength member

Material

Glass Fbre Reinforced Plasticrod (GFRP)

Diameter (mm)

2.0

2.5

2.8

3.7

2.6

Adjustable (OEM)

1.8|2.3

2.5

2.8

3.7

2.6

PE coated diameter (mm)

4.2

7.4

4.8

Water Blocking

Material

Water blocking tape

Peripheral Strength

Material

Aramid Yarn

Outer Sheath

Thickness (mm)

1.8mm(1.5-2.0mm OEM) HDPE

Cable diameter(mm) Approx.

9.5

9.5|10

12.2

13.9

17.1

20.2

Cable diameter(mm) Adjustable (OEM)

8.0|8.5|9.0

10.5|11.0

Operating temperature range(℃)

From -40~+70

Max. span (m)

80m | 100m | 120m | 200m | 250m

Climate condition

No Ice,25m/s Max Wind Speed

MAT

Design according to customer requirements

√ Other structure and ﬁbre count are also available according to customer requirements.

√ Cable diameter and weight in this table is typical value, which will ﬂuctuate according to different designs

√ The span needs to be recalculated due to other climate conditions according to the installation area.

Remarks:

Detail requirements need to be sent to us for cable design and price calculation. Below requirements are a must:
A, Power transmission line voltage level
B, fiber count
C, Span or tensile strength
D, weather conditions

How to Ensure the Quality and Performance of Your Fiber Optic Cable?

We control the products quality from the raw material to the finish produts All the raw material should be tested to match the Rohs standard when they arrived at our manufacture.We control the quality during the producing process by advanced technology and equipments. We test the finished products according to the test standard. Approved by various professional optical and communication product institution , GL also conduct various in-house testing in its own Laboratory and Test Center. We also conduct test with special arrangement with the Chinese Government Ministry of Quality Supervision & Inspection Center of Optical Communication Products(QSICO).

Quality Control - Test Equipment and Standard:

Feedback: In order to meet the world’s highest quality standards, we continuously monitor feedback from our customers. For comments and suggestions, please, contact us, Email: [email protected].

Write your message here and send it to us

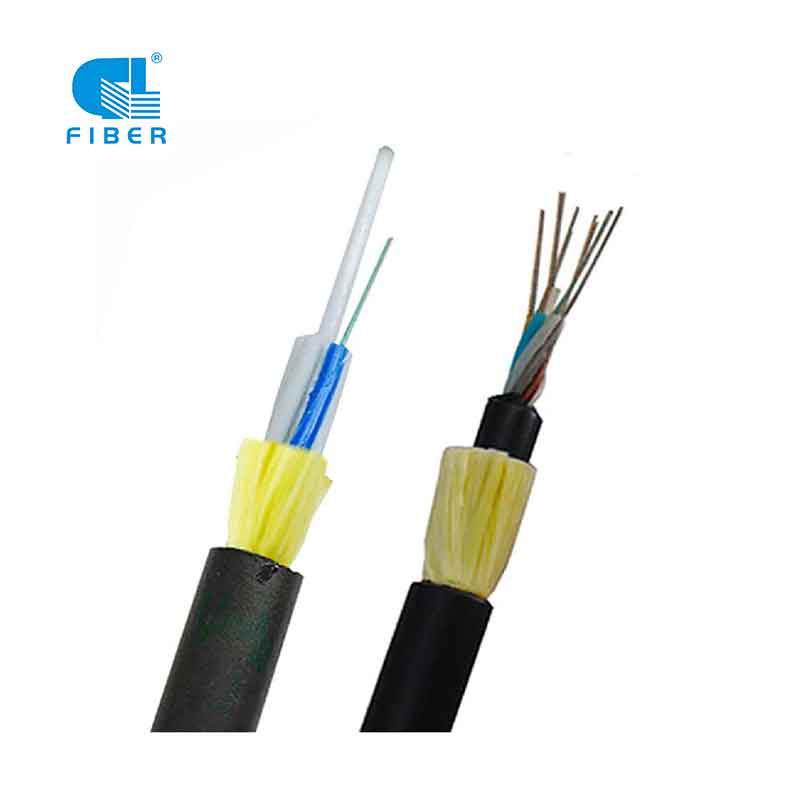

ADSS Single Jacket All-Dielectric Self-Supporting Fiber optic cable is idea for installation in distribution as well as transmission envirline installations are required as its name indicates, there is no support or messenger wire required, so installation is achieved in a single pass.Structural features:Single layer ,Loose tube stranding, Non-metal strength member, Half dry water-blocking, Aramid yarn strength member, PE outer jacket. Includes 2 core, 4 core, 6 core, 8 core, 12 core, 16 core, 24 core, 36 core, 48 core, 96 core, up to 144 core.

2-144 Core Single Jackets ADSS Cable Specifications:

Cable fiber count		/	2~30	32~60	62~72	96	144
Structure		/	1+5	1+5	1+6	1+8	1+12
Fiber style		/	G.652D
Central strength member	material	mm	FRP
Central strength member	Diameter (average)	mm	1.5	1.5	2.1	2.1	2.1
Loose Tube	Material	mm	PBT
	Diameter (average)		1.8	2.1	2.1	2.1	2.1
	Thickness(average)		0.32	0.35	0.35	0.35	0.35
	Max fiber/loose tube		6	12	12	12	12
	Tubes color		Full color identification
	Fiber excess length	%	0.7~0.8

Water resistance	Material	/	Cable jelly + water resistant layer
Non-metallic strengthen components	Material	/	Aramid Yarn
Outer sheath	material	mm	MDPE
	Outer sheath		1.8mm
Cable diameter(average)		mm	9.6	10.2	10.8	12.1	15
Cable weight (Approximate)		kg/km	70	80	90	105	125
Cable Sectional area		mm2	72.38	81.72	91.61	115	176.7
Attenuation coefficient(Max)	1310nm	dB/km	0.35
	1550nm		0.21
Rated Tensile Strength(RTS)		kn	5.8
Max allowed tension( MAT)		kn	2.2
Annual average operating tension (EDS)		kn	3.0
Young’s modulus		kn/mm2	7.6
Coefficient of thermal expansion		10-6/℃	9.3
Crush resistance	Long term	N/100mm	1100
	Short term		2200
Permission Bent Radius	static	mm	15 of OD
	dynamic		20 of OD
Temperature	When laying	℃	-20~+60
	Storage and transportation		-40~+70
	runing		-40~+70
Scope of application	Suitable for voltage level under 110kV, wind speed below 25m/s, icing 5mm
Cable Marks	Company Name ADSS-××B1-PE-100M DL/T 788-2001 ××××M Year （Or at customer’s request）

Note :

Only s part of ADSS cable are listed in the table. ADSS cables with other spans can be inquired from GL Fiber directly.
Specifications in the table are got on condition that there is no height difference and the installation sag is 1%.
Fiber count is 2 to 144. The identification of fibers complies with the national standard.
This datasheer can only be a rerence, nor a supplement to the contract. Please contact our sales people for more detailed information.

Packing Material:

Non-returnable wooden drum.
Both ends of the fiber optic cables are securely fastened to the drum and sealed with a shrinkable cap to prevent ingress of moisture.
• Each single length of cable shall be reeled on Fumigated Wooden Drum
• Covered by plastic buffer sheet
• Sealed by strong wooden battens
• At least 1 m of inside end of cable will be reserved for testing.
• Drum length: Standard drum length is 3，000m±2%;

Cable printing:

The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.

The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.

1. Cable type and number of optical fiber
2. Manufacturer name
3. Month and Year of Manufacture
4. Cable length

Length&Packing	2KM	3KM	4KM	5KM
Packing	wooden drum	wooden drum	wooden drum	wooden drum
Size	900750900MM	10006801000MM	10907501090MM	12907201290
Net weight	156KG	240KG	300KG	400KG
Gross weight	220KG	280KG	368KG	480KG

Remarks：The reference cable diameter 10.0MM and the span 100M. For specific specifications, please ask the sales department.

Drum marking:

Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with the following:

1. Manufacture name and logo
2. Cable length
3. Fiber cable types and number of fibers,etc
4. Rollway
5. Gross and net weight

Hunan GL Technology Co., Ltd (GL FIBER) is one of the top manufacturers and exporters of Fiber optic cables from China, and also we are your best choice of partner in this field. In the past 20 years, we have been providing high quality products to telecom operators, ISPs, trade importers, OEM customers and various communication projects in more than 190 countries around the world.

Our’s optical fiber cables include ADSS cables, FTTH flat drop cables, Aerial installation cables, Duct installation cables, Direct buried installation cables, Air blowing installation cables, Biological protection cables, etc. As well as a variety of fiber optic cable according to the customer’s use scenario, provide a variety of fiber optic cable structure design and manufacturing.
