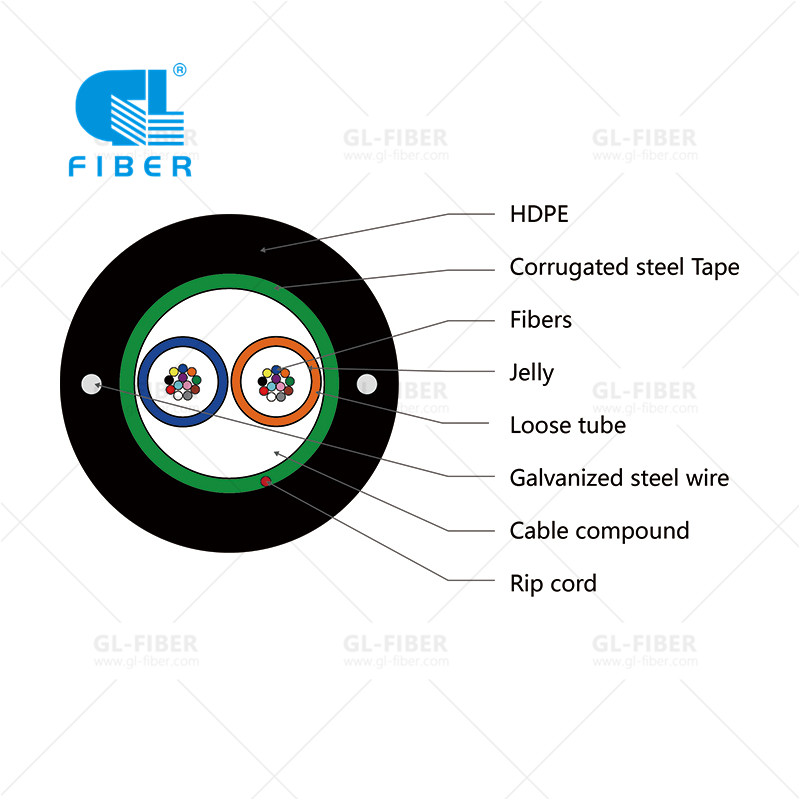

GYXTW cable, single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices between them to guarantee the compactness and longitudinal water-blocking performance. Two parallel steel wires are placed at both sides of the cable core while PE sheath is extruded over it.
Product Detaills:
- Product Name: GYXTW Outdoor Duct Aerial Cable;
- Outer Sheath: PE,HDPE,MDPE,LSZH
- Armored: Steel Tape+Parallel Steel Wire
- Fiber Type: Singlemode,multimode,om2,om3
- Fiber Count: 8-12 Core
GYXTW Single Jacket Single Amored Cable 8-12 Core possesses high tensile strength and flexibility in compact cable sizes. At the same time, it provides excellent optical transmission and physical performance.
GL ensures a continuing level of quality in our cable products through several quality control programs including ISO 9001. Both initial and periodic qualification testing are performed to assure the cable’s performance and durability in the field environments.
