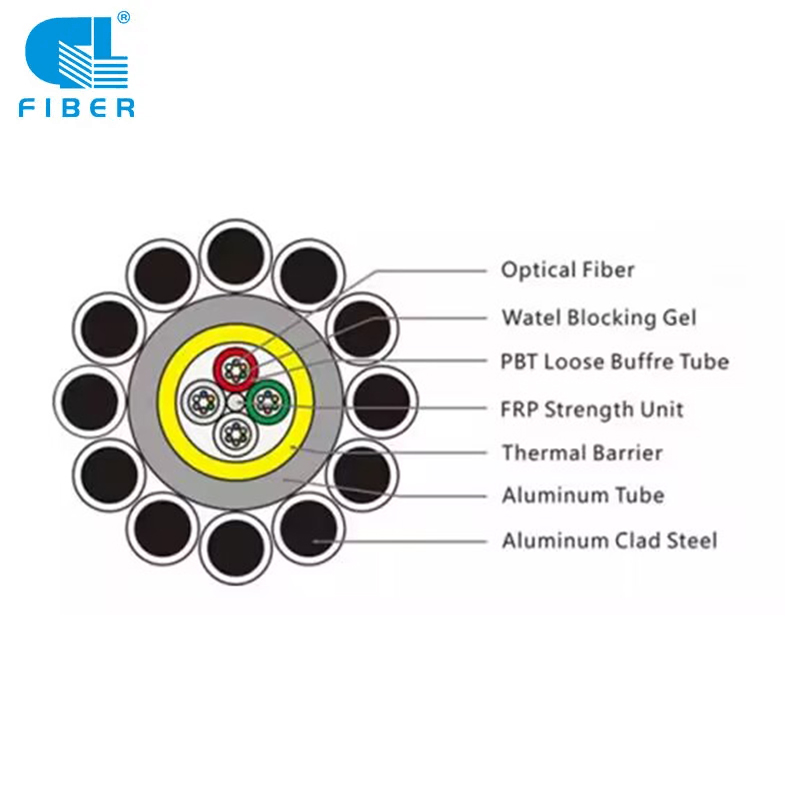

The PBT Loose Tube Optical Ground Wire (OPGW) is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. Good anti-corrosion performance.Material and structure are uniform, good resistance to vibration fatigue.
Fiber Type: G652D; G655C;
Fiber Count: 12-144 Core
Standard: IEEE 1138、IEC 60794-4、 IEC 60793、TIA/EIA 598 A
Applications:
Reconstruction of old power lines and low voltage level lines.
Coastal chemical industrial areas with heavy chemical pollution.
Main Features: (addition to the features of stainless steel tube OPGW cable)
1. Can meet high electrical performance requirements, and have excellent corrosion resistant performance.
2. Applicable to coastal areas and areas with heavy pollution.
3. Short-circuit current has little effect on the fiber.
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit(KA2s) |
| OPGW-113(87.9;176.9) | 48 | 14.8 | 600 | 87.9 | 176.9 |
| OPGW-70（81; 41） | 24 | 12 | 500 | 81 | 41 |
| OPGW-66(79;36) | 36 | 11.8 | 484 | 79 | 36 |
| OPGW-77(72;36) | 36 | 12.7 | 503 | 72 | 67 |
Remarks: Detail requirements need to be sent to us for cable design and price calculation. Below requirements are a must:
A, Power transmission line voltage level
B, fiber count
C, Cable structure drawing & diameter
D, Tensile strength
F, Short circuit capacity
| Item | Test Method | Requirements |
|---|---|---|
| Tension | IEC 60794-1-2-E1Load: according to cable structure Sample length: no less than 10m, linked length no less than100mDuration time: 1min | 40%RTS no additional fibre strain（0.01%）, no additional attenuation (0.03dB).60%RTS fibre strain≤0.25%，additional attenuation≤0.05dB (No additional attenuation after test). |
| Crush | IEC 60794-1-2-E3Load: according to above table, three pointsDuration time: 10min | Additional attenuation at 1550nm ≤0.05dB/fibre; No damage to the elements |
| Water Penetration | IEC 60794-1-2-F5BTime : 1 hour Sample length: 0.5mWater height: 1m | No water leakage. |
| Temperature Cycling | IEC 60794-1-2-F1Sample length: No less than 500mTemperature range: -40℃ to +65℃ Cycles: 2 Temperature cycling test dwell time: 12h | The change in attenuation coefficient shall be less than 0.1dB/km at 1550nm. |
GL FIBER' OPGW cable is mainly divided into: central-type stainless steel tube OPGW, stranded-type stainless steel tube OPGW, al-covered stainless steel tube OPGW, aluminum tube OPGW, lightning resistant central stainless steel tube OPGW with compressed wires and OPPC.
All the OPGW cable supplied from GL FIBER will be 100% tested before shipping, There are different general test series to assure the quality of OPGW cable, Such as:
Type test
Type test may be waived by submitting makerʼs certificate of the similar product performed in an internationally acknowledged independent test organization or laboratory. If type test should be performed, it will be carried out according to an extra type test procedure reached to an agreement between purchaser and manufacturer.
Routine test
The optical attenuation coefficient on all production cable lengths is measured according to IEC 60793-1-CIC (Back-scattering technique, OTDR). Standard single-mode fibers are measured at 1310nm and at 1550nm. Non-zero dispersion shifted single‒mode (NZDS) fibers are measured at 1550nm.
Factory test
Factory acceptance test is carried out on two samples per order in the presence of the customer or his representative. The requirements for quality characteristics are determined by relevant standards and agreed quality plans.
Quality Control - Test Equipment and Standard:
Feedback: In order to meet the world’s highest quality standards, we continuously monitor feedback from our customers. For comments and suggestions, please, contact us, Email: [email protected].
Specific Type and Technical Data:
|
No |
Specification |
Fiber Count |
Diameter (mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit (KA2s) |
|
1 |
OPGW-24B1-40[54;9.3] |
24 |
9.0 |
304 |
54 |
9.3 |
|
2 |
OPGW-12B1-50[58;12.4] |
12 |
9.6 |
344 |
58 |
12.4 |
|
3 |
OPGW-24B1-60[39.5;29.5] |
24 |
10.8 |
317 |
39.5 |
29.5 |
|
4 |
OPGW-24B1-70[78;24.6] |
24 |
11.4 |
464 |
78 |
24.6 |
|
5 |
OPGW-24B1-80[98;31.1] |
24 |
12.1 |
552 |
98 |
31.1 |
|
6 |
OPGW-24B1-90[113;38.3] |
24 |
12.6 |
618 |
113 |
38.3 |
|
7 |
OPGW-24B1-90[74:46.3] |
24 |
12.6 |
529 |
74 |
46.3 |
|
8 |
OPGW-24B1-100[118;50] |
24 |
13.2 |
677 |
118 |
50 |
|
9 |
OPGW-24B1-110[133;65.1] |
24 |
14.0 |
761 |
133 |
65.1 |
|
10 |
OPGW-24B1-120[97;102.6] |
24 |
14.5 |
654 |
97 |
102.6 |
|
11 |
OPGW-24B1-130[107;114.3] |
24 |
15.2 |
762 |
107 |
114.3 |
|
12 |
OPGW-24B1-155[182;123.5] |
24 |
16.6 |
1070 |
182 |
123.5 |
|
13 |
OPGW-48B1-80[59;57.9] |
48 |
12.0 |
431 |
59 |
57.9 |
|
14 |
OPGW-48B4-90[92;59.1] |
48 |
12.9 |
572 |
92 |
59.1 |
|
15 |
OPGW-36B1-100[119;49] |
36 |
13.5 |
688 |
119 |
49 |
|
16 |
OPGW-48B1-110[133;63] |
48 |
14.1 |
761 |
133 |
63 |
|
17 |
OPGW-48B1-120[147;78.4] |
48 |
14.9 |
841 |
147 |
78.4 |
|
18 |
OPGW-48B1-155 [71.4;256.0] |
48 |
16.8 |
675 |
71.4 |
256 |
|
19 |
OPGW-48B1-220 [72.5;387.4] |
48 |
19.6 |
700 |
72.5 |
387.4 |
|
20 |
OPGW-48B1-264 [123.6;578.2] |
48 |
21.6 |
980 |
123.6 |
578.2 |
Note: Other optical fibre type and count, stranded wire are available om request.
Mechanical and Environmental Test Characteristics:
| Item | Test Method | Requirements |
|---|---|---|
| Tension | IEC 60794-1-2-E1Load: according to cable structure Sample length: no less than 10m, linked length no less than100mDuration time: 1min | 40%RTS no additional fibre strain（0.01%）, no additional attenuation (0.03dB).60%RTS fibre strain≤0.25%，additional attenuation≤0.05dB (No additional attenuation after test). |
| Crush | IEC 60794-1-2-E3Load: according to above table, three pointsDuration time: 10min | Additional attenuation at 1550nm ≤0.05dB/fibre; No damage to the elements |
| Water Penetration | IEC 60794-1-2-F5BTime : 1 hour Sample length: 0.5mWater height: 1m | No water leakage. |
| Temperature Cycling | IEC 60794-1-2-F1Sample length: No less than 500mTemperature range: -40℃ to +65℃ Cycles: 2 Temperature cycling test dwell time: 12h | The change in attenuation coefficient shall be less than 0.1dB/km at 1550nm. |

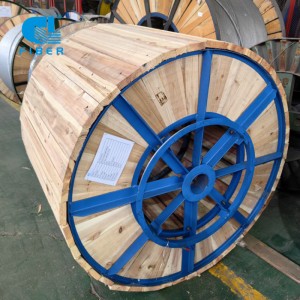

Non-returnable wooden drum.
Both ends of the fiber optic cables are securely fastened to the drum and sealed with a shrinkable cap to prevent ingress of moisture.

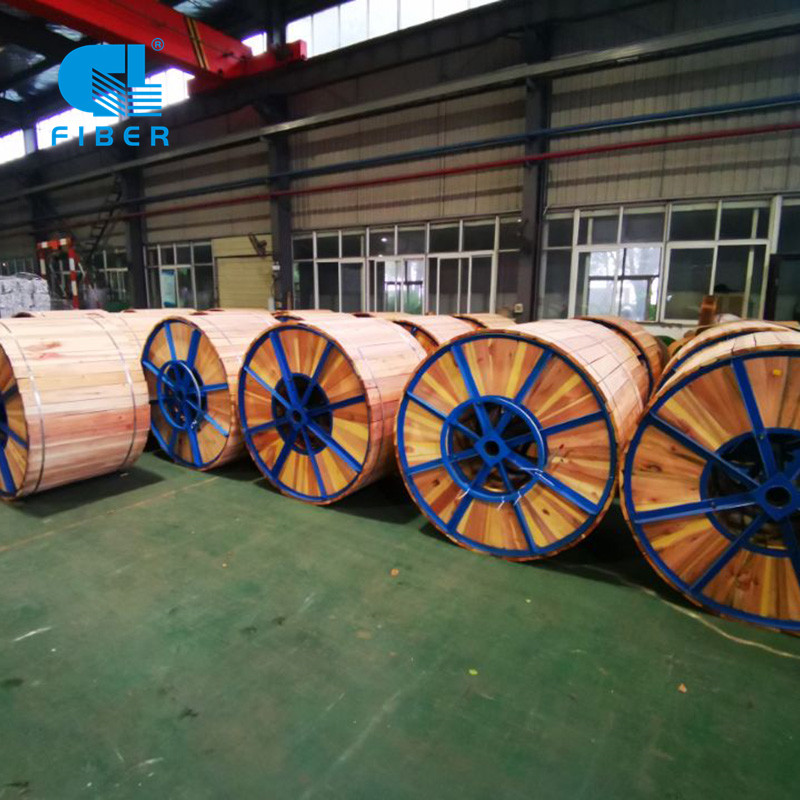

• Each single length of cable shall be reeled on Fumigated Wooden Drum
• Covered by plastic buffer sheet
• Sealed by strong wooden battens
• At least 1 m of inside end of cable will be reserved for testing.
• Drum length: Standard drum length is 3，000m±2%;
The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.
The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.
1. Cable type and number of optical fiber
2. Manufacturer name
3. Month and Year of Manufacture
4. Cable length
Drum marking:
Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with the following:
1. Manufacture name and logo
2. Cable length
3. Fiber cable types and number of fibers,etc
4. Rollway
5. Gross and net weight
Port:
Shanghai/Guangzhou/Shenzhen
| Quantity(KM) | 1-300 | ≥300 |
| Est.Time(Days) | 15 | To be begotiated! |
Note:The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.
Remark: The cables are packed in carton, coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.
The cables are packed in carton, coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.
