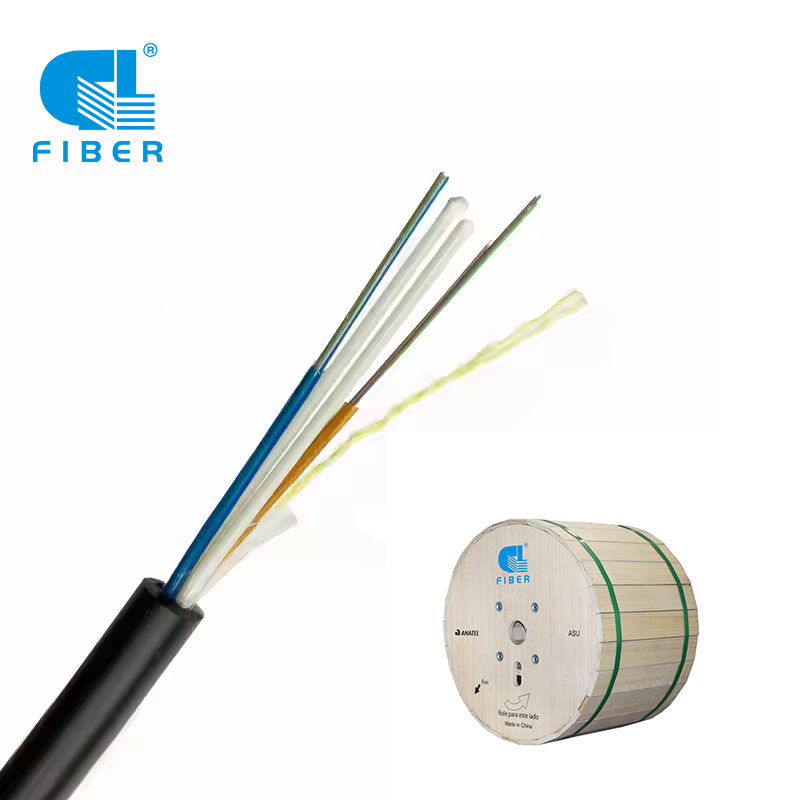

The ASU fiber optic cable (GYFFY) is widely used in south America, especially in Brazil, Peru and Argentina. The cable structure is that two FRP and single loose tube stranded together, with one Rip cord fited around them. This Cable is used for Voice , data, traffic images captures, used in Campus distribution.
Products Details:
|
No. |
Items | Unit |
Specification |
|
|
G.652D |
||||
|
1 |
Mode Field Diameter |
1310nm |
μm |
9.2±0.4 |
|
1550nm |
μm |
10.4±0.5 |
||
|
2 |
Cladding Diameter |
μm |
125±0.5 |
|
|
3 |
Cladding Non-Circularity |
% |
≤0.7 |
|
|
4 |
Core-Cladding Concentricity Error |
μm |
≤0.5 |
|
|
5 |
Coating Diameter |
μm |
245±5 |
|
|
6 |
Coating Non-Circularity |
% |
≤6.0 |
|
|
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
|
|
8 |
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
|
|
9 |
Attenuation(max.) |
1310nm |
dB/km |
≤0.36 |
|
1550nm |
dB/km |
≤0.22 |
||
ASU80 Cable Technical Parameter:
|
Items |
Specifications |
|
|
Fiber Count |
12 fibers |
|
|
Span |
80m |
|
|
Colored Coating Fiber |
Dimension |
250mm±15μm |
|
|
Color |
Green、Yellow、White、Blue、Red、Violet、Brown、Pink、Black、Grey、Orange、Aqua |
|
Cable OD(mm) |
6.6mm±0.2 |
|
| Cable weight |
42 KGS/KM |
|
|
Loose Tube |
Dimension |
2.0mm |
|
|
Material |
PBT |
|
|
Color |
White |
|
Strength Member |
Dimension |
2.0mm |
|
|
Material |
FRP |
|
Outer Jacket |
Material |
PE |
|
|
Color |
Black |
|
Items |
Unit |
Specifications |
|
Tension（Long Term） |
N |
1000 |
|
Tension（Short Term） |
N |
1500 |
|
Crush（Long Term） |
N/100mm |
500 |
|
Crush（Short Term） |
N/100mm |
1000 |
|
Installation Temperature |
℃ |
-0℃ to + 60℃ |
|
Operating Temperature |
℃ |
-20℃ to + 70℃ |
|
Storage Temperature |
℃ |
-20℃ to + 70℃ |
It is recommended that the construction and wiring of this ASU optical cable adopts the hanging erection method. This erection method can achieve the best comprehensiveness in terms of erection efficiency, erection cost, operational safety and protection of optical cable quality. Operation method: In order not to damage the sheath of the optical cable, the pulley traction method is generally adopted. As shown in the figure, install the guide rope and two guide pulleys on one side (start end) and the pulling side (terminal end) of the optical cable reel, and install a large pulley (or tight guide pulley) at the appropriate position of the pole. Connect the traction rope and the optical cable with the traction slider,then install a guide pulley every 20-30m on the suspension line (the installer is better to ride on the pulley), and each time a pulley is installed, the traction rope is passed through the pulley, and the end is pulled manually or by a tractor (pay attention to the tension control). ). The cable pulling is completed. From one end, use the optical cable hook to hang the optical cable on the suspension line, and replace the guide pulley. The distance between the hooks and the hooks is 50±3cm. The distance between the first hooks on both sides of the pole is about 25cm from the fixing point of the hanging wire on the pole.
In 2022, our ASU-80 optical cable has passed the ANATEL certification in Brazil, OCD (ANATEL subsidiary) certificate number: Nº 15901-22-15155; certificate query website: https://sistemas.anatel.gov.br/mosaico /sch/publicView/listarProdutosHomologados.xhtml.
Structure Design
Introduction of optical fibers
Central loose tube, Two FRP Strength member, one rip cord; Application for local area Network .
Fiber Optical Technical Parameter
|
No. |
Items | Unit |
Specification |
|
|
G.652D |
||||
|
1 |
Mode Field Diameter |
1310nm |
μm |
9.2±0.4 |
|
1550nm |
μm |
10.4±0.5 |
||
|
2 |
Cladding Diameter |
μm |
125±0.5 |
|
|
3 |
Cladding Non-Circularity |
% |
≤0.7 |
|
|
4 |
Core-Cladding Concentricity Error |
μm |
≤0.5 |
|
|
5 |
Coating Diameter |
μm |
245±5 |
|
|
6 |
Coating Non-Circularity |
% |
≤6.0 |
|
|
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
|
|
8 |
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
|
|
9 |
Attenuation(max.) |
1310nm |
dB/km |
≤0.36 |
|
1550nm |
dB/km |
≤0.22 |
||
ASU 80 Fiber Optic Cable Technical Parameter
|
Items |
Specifications |
|
|
Fiber Count |
12 fibers |
|
|
Span |
80m |
|
|
Colored Coating Fiber |
Dimension |
250mm±15μm |
|
|
Color |
Green、Yellow、White、Blue、Red、Violet、Brown、Pink、Black、Grey、Orange、Aqua |
|
Cable OD(mm) |
6.6mm±0.2 |
|
| Cable weight |
42 KGS/KM |
|
|
Loose Tube |
Dimension |
2.0mm |
|
|
Material |
PBT |
|
|
Color |
White |
|
Strength Member |
Dimension |
2.0mm |
|
|
Material |
FRP |
|
Outer Jacket |
Material |
PE |
|
|
Color |
Black |
|
Items |
Unit |
Specifications |
|
Tension（Long Term） |
N |
1000 |
|
Tension（Short Term） |
N |
1500 |
|
Crush（Long Term） |
N/100mm |
500 |
|
Crush（Short Term） |
N/100mm |
1000 |
|
Installation Temperature |
℃ |
-0℃ to + 60℃ |
|
Operating Temperature |
℃ |
-20℃ to + 70℃ |
|
Storage Temperature |
℃ |
-20℃ to + 70℃ |

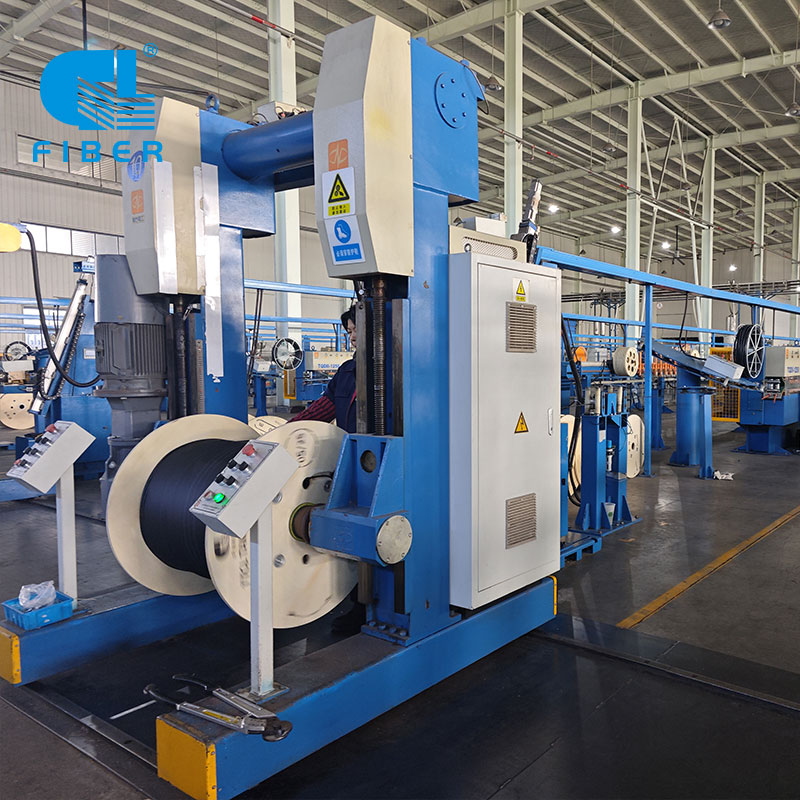

Approved by various professional optical and communication product institution, GL also conduct various in-house testing in its own Laboratory and Test Center. She also conduct test with special arrangement with the Chinese Government Ministry of Quality Supervision & Inspection Center of Optical Communication Products (QSICO). GL possess the technology to keep its fiber attenuation loss within Industry Standards.
The cable is in accordance with applicable standard of cable and requirement of customer. The following test items are carried out according to corresponding reference. Routine tests of optical fiber.
| Mode field diameter | IEC 60793-1-45 |
| Mode field Core/clad concentricity | IEC 60793-1-20 |
| Cladding diameter | IEC 60793-1-20 |
| Cladding non-circularity | IEC 60793-1-20 |
| Attenuation coefficient | IEC 60793-1-40 |
| Chromatic dispersion | IEC 60793-1-42 |
| Cable cut-off wavelength | IEC 60793-1-44 |
| Tension Loading Test | |
| Test Standard | IEC 60794-1 |
| Sample length | No less than 50 meters |
| Load | Max. installation load |
| Duration time | 1 hour |
| Test results | Additional attenuation:≤0.05dB No damage to outer jacket and inner elements |
| Crush/Compression Test | |
| Test Standard | IEC 60794-1 |
| Load | Crush load |
| Plate size | 100mm length |
| Duration time | 1 minute |
| Test number | 1 |
| Test results | Additional attenuation:≤0.05dB No damage to outer jacket and inner elements |
| Impact Resistance Test | |
| Test Standard | IEC 60794-1 |
| Impact energy | 6.5J |
| Radius | 12.5mm |
| Impact points | 3 |
| Impact number | 2 |
| Test result | Additional attenuation:≤0.05dB |
| Repeated Bending Test | |
| Test Standard | IEC 60794-1 |
| Bending radius | 20 X diameter of cable |
| Cycles | 25 cycles |
| Test result | Additional attenuation: ≤ 0.05dB No damage to outer jacket and inner elements |
| Torsion/Twist Test | |
| Test Standard | IEC 60794-1 |
| Sample length | 2m |
| Angles | ±180 degree |
| cycles | 10 |
| Test result | Additional attenuation:≤0.05dB No damage to outer jacket and inner elements |
| Temperature cycling Test | |
| Test Standard | IIEC 60794-1 |
| Temperature step | +20℃ →-40℃ →+85℃→+20℃ |
| Time per each step | Transition from 0℃ to -40℃:2hours; duration at -40℃:8 hours; Transition from -40℃ to +85 ℃:4hours; duration at +85℃:8 hours; Transition from +85℃ to 0℃:2hours |
| Cycles | 5 |
| Test result | Attenuation variation for reference value (the attenuation to be measured before test at +20±3℃) ≤ 0.05 dB/km |
| Water penetration Test | |
| Test Standard | IEC 60794-1 |
| Height of water column | 1m |
| Sample length | 1m |
| Test time | 1 hour |
| Test resul | No water leakage from the opposite of the sample |
It is recommended that the construction and wiring of this ASU optical cable adopts the hanging erection method. This erection method can achieve the best comprehensiveness in terms of erection efficiency, erection cost, operational safety and protection of optical cable quality. Operation method: In order not to damage the sheath of the optical cable, the pulley traction method is generally adopted. As shown in the figure, install the guide rope and two guide pulleys on one side (start end) and the pulling side (terminal end) of the optical cable reel, and install a large pulley (or tight guide pulley) at the appropriate position of the pole. Connect the traction rope and the optical cable with the traction slider,then install a guide pulley every 20-30m on the suspension line (the installer is better to ride on the pulley), and each time a pulley is installed, the traction rope is passed through the pulley, and the end is pulled manually or by a tractor (pay attention to the tension control). ). The cable pulling is completed. From one end, use the optical cable hook to hang the optical cable on the suspension line, and replace the guide pulley. The distance between the hooks and the hooks is 50±3cm. The distance between the first hooks on both sides of the pole is about 25cm from the fixing point of the hanging wire on the pole.
In 2022, our ASU-80 optical cable has passed the ANATEL certification in Brazil, OCD (ANATEL subsidiary) certificate number: Nº 15901-22-15155; certificate query website: https://sistemas.anatel.gov.br/mosaico /sch/publicView/listarProdutosHomologados.xhtml.
Packing and Marking

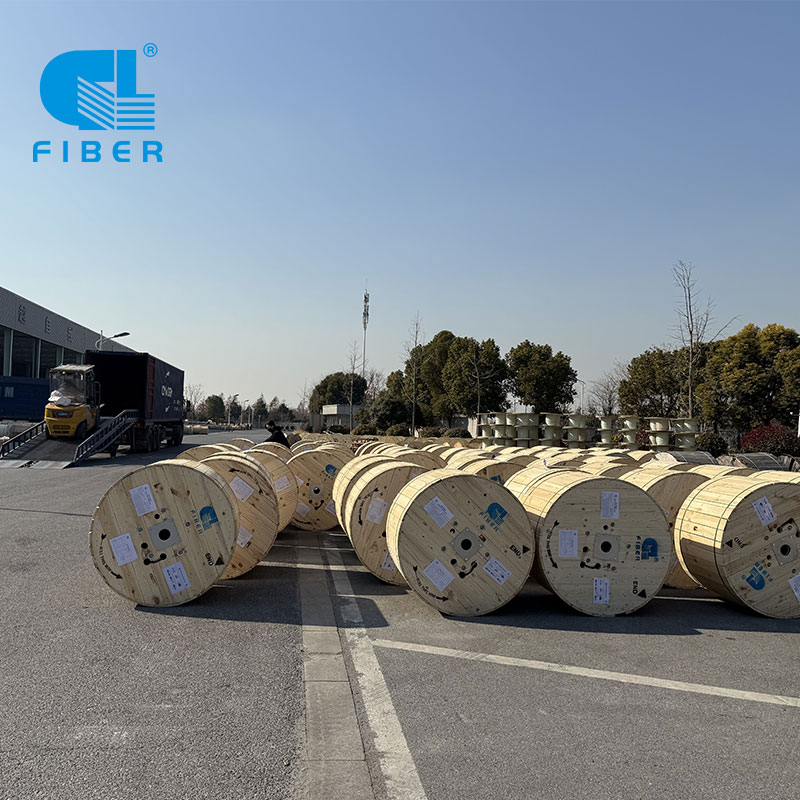

Packaging and Shipping:
