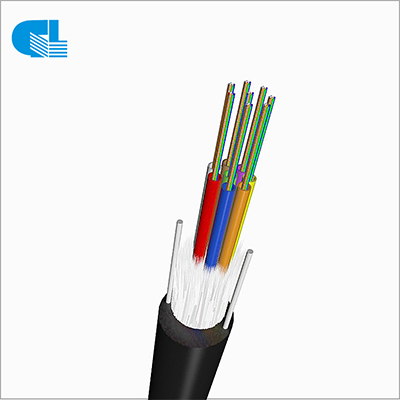

Best Price on Fiber Optic Cable Assembly - Micromoudule 72 Core Duct G.657A2 / G.652D (Module 12) – GL Technology Detail:

Technical Characteristics

1,With excellent mechanical and environmental properties2,Has good bending performance, easy to install

Dimension and Properties
Physical
Fiber count (G.657A2/G.652D)
72
μsheath No.
6
Fiber No. per module
12
μsheath diameter
1.5±0.1mm
Strength member diameter
1.2±0.1mm*2
Outer sheath thickness
Nom. 2.0mm
Cable OD
10.2mm±5%
Cable weight
74kg/km±15%
Operation temperature range
-30 deg C to + 60 deg C
Installation temperature range
-5 deg C to + 40 deg C
Transport and storage temperature range
-40 deg C to + 70 deg C
Mechanical
Max. tensile load
160daN
Crush resistance
200daN/100mm
Minimal operation bending radius
20D
Minimal installation bending radius
10D
Color code scheme:
Fiber color
red
blue
green
yellow
violet
white
orange
gray
brown
black
aqua
rose
Module color
red
blue
green
yellow
violet
white
/
/
/
/
/
/

Note: Sheath thickness not consider ripcord portion

OEM Services is available!
E-mail:[email protected]
Write your message here and send it to us

Product detail pictures:

Best Price on Fiber Optic Cable Assembly -
 Micromoudule 72 Core Duct G.657A2 / G.652D (Module 12) – GL Technology detail pictures

Best Price on Fiber Optic Cable Assembly -
 Micromoudule 72 Core Duct G.657A2 / G.652D (Module 12) – GL Technology detail pictures

Related Product Guide:

We are convinced that with joint endeavours, the small business between us will bring us mutual benefits. We could assure you products quality and competitive selling price for Best Price on Fiber Optic Cable Assembly - Micromoudule 72 Core Duct G.657A2 / G.652D (Module 12) – GL Technology, The product will supply to all over the world, such as: United Kingdom , Paraguay , Moldova , The design, processing, purchasing, inspection, storage, assembling process are all in scientific and effective documentary process , increasing usage level and reliability of our brand deeply, which makes us become superior supplier of the four major product categories shell castings domestically and obtained the customer's trust well.

Optical Cable Factory

In 2004, GL FIBER established the factory to produce optical cable products, mainly producing drop cable, outdoor optical cable, etc.

GL  Fiber now have 18 sets of coloring equipments, 10 sets of secondary plastic coating equipments, 15 sets of SZ layer twisting equipments, 16 sets of sheathing equipments, 8 sets of FTTH drop cable production equipments, 20 sets of OPGW optical cable equipments, and 1 paralleling equipment And many other production auxiliary equipments. At present, the annual production capacity of optical cables reaches 12 million core-km (average daily production capacity of 45,000 core km and kinds of cables can reach  1,500 km) . Our factories can produce various types of indoor and outdoor optical cables ( such as ADSS, GYFTY, GYTS, GYTA, GYFTC8Y, air-blown micro-cable, etc.). the daily production capacity of common cables can reach 1500KM/day, the daily production capacity of drop cable can reach max. 1200km/day, and the daily production capacity of OPGW can reach 200KM/day.
