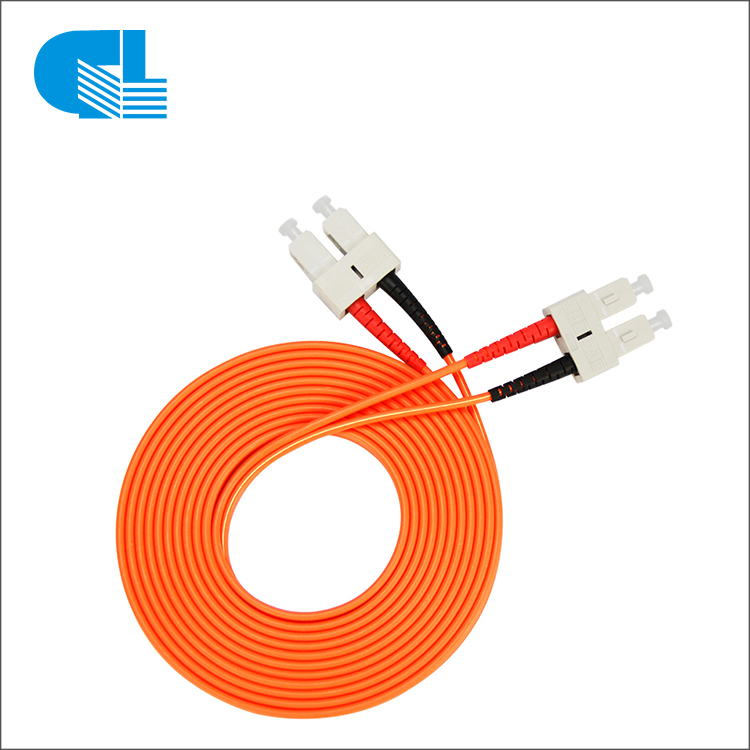

factory Outlets for Cable De Fibra Óptica - Standard Optical Fiber Patch Cord – GL Technology Detail:


Application:

CATV、Active dvice termination、Telecommunication networks、Metro、Local Area Networks(LANs)、Data Processing networks、Test Equipment、Premise installations、Wide Area Networks(WANs);

Characteristic:

1,Simplex and duplex connector available;

2,Good exchange ability and good durability;

3,Low Insertion Loss, High Temperature Stability and Good exchange ability.

Feature:

Low insertion loss and back reflection loss

Good echangeabilityGood Durability

High temperature stability

Standard: Telcordia GR-326-CORE

Technical Parameter:
Item Single Mode Multimode
Insertion Loss ≤0.2dB ≤0.2dB
Return Loss ≥50dB(PC); ≥65dB(APC) ≥35dB (PC)
Repeat-ability ≤0.1 ≤0.1
Durability ≤0.2dB typical change 1000matings ≤0.2dB typical change 1000matings
Interchangeability ≤0.2dB 850nm,1300nm
Operating Temperature – 40℃ to +85℃ – 40℃ to +85℃
Ordering Options
Connector SC, FC, ST, LC, E2000, DIN, MU,MTRJ, etc.
Finish UPC, APC,PC; for MTRJ, Female, Male
Cable Type Simplex, Duplex Straight, Duplex Reverse
Fiber SM(G652), 62.5/125um, 50/125um, OM2, OM3,SM(G655)
Cable Jacket Riser, Plenum, LSZH
Cable Diameter Ø3.0mm, Ø2.0mm, Ø0.9mm, etc.
Cable Length Length in meter
Notes:

Only a part of Patch Cords are listed here. We can depend on customer’s requirement to producing the different model Patch Cords.
