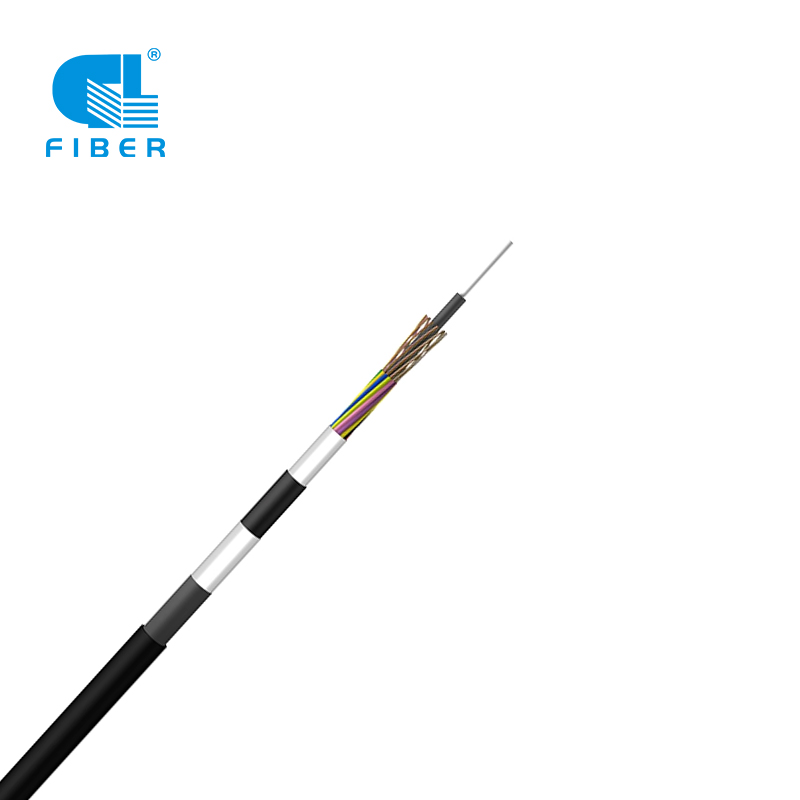

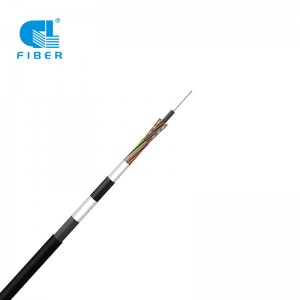

GYFTA54 Anti-rodent and Anti-termite Optical Cable with Double Metallic Armors and Nylon Sheath

GL Fiber provides types of biological protection(Anti-Rodent, Anti-Termite, Anti-Birds) optical fiber cables, This type optical cables resistant to biological hazards caused by rodents, termites and birds, etc., after installation. Rodents often damage optical cables. Termites not only bite but also release formic acid to the cables. Our design methods include physical(including metallic and glass fiber armor and nylon sheath) and chemical (Spicy additives ) against biological hazards.

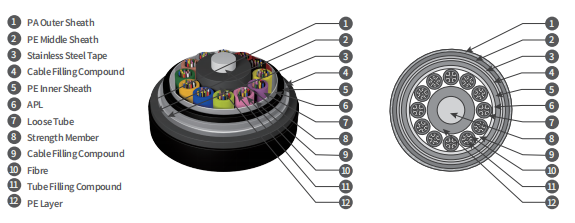

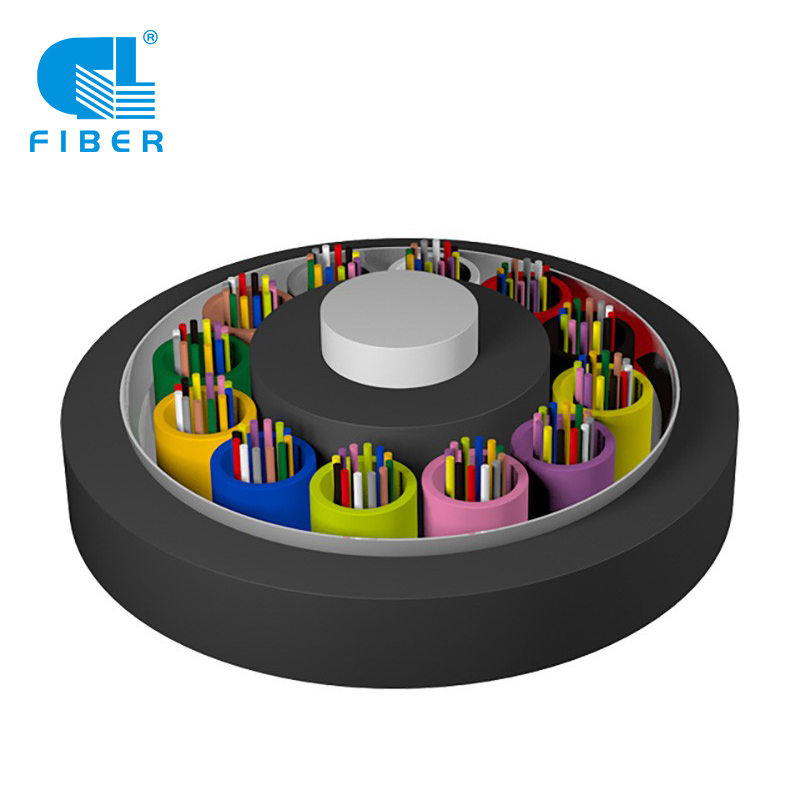

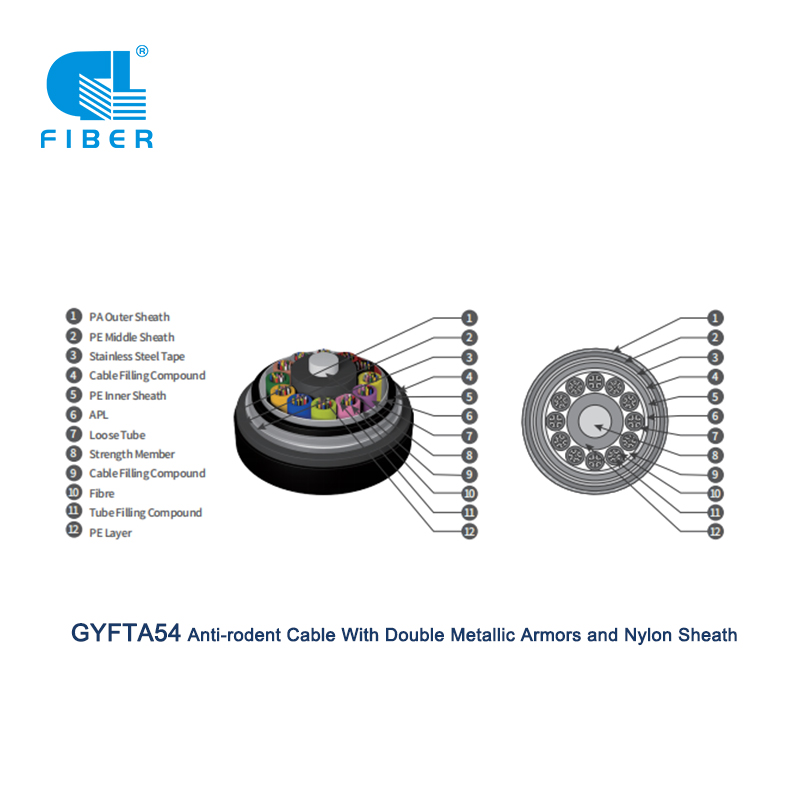

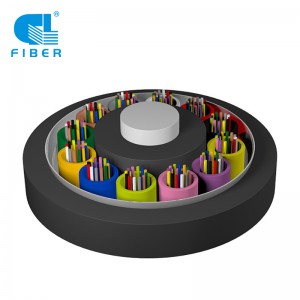

Cable Section Design:

Features:

• Accurate process control ensuring good mechanical and temperature performances
• The material of loose tubes with good hydrolysis resistance and relatively high strength
• Tube filling compound providing key protection for fibres
• Excellent crush resistance
• Metallic armors providing good anti-rodent performance
• Nylon outer sheath with high hardness providing certain anti-termite performance
• Applicable to duct and buried installations

Technical Characteristics:

Type	Units	Cable diameter(mm)	Cable weight(Kg/km)	Tensile strengthLong/short term (N)	CrushLong/short term（N/100mm）	Bending radiusDynamic/static (mm)
GYFTA54-24Xn	6	14.4	225	900/2700	1000/3000	20D/10D
GYFTA54-48Xn	6	15.0	250	900/2700	1000/3000	20D/10D
GYFTA54-72Xn	6	15.0	250	900/2700	1000/3000	20D/10D
GYFTA54-96Xn	8	16.8	300	900/2700	1000/3000	20D/10D
GYFTA54-144Xn	12	20.0	370	900/2700	1000/3000	20D/10D
GYFTA54-288Xn	24	22.4	465	900/2700	1000/3000	20D/10D

Note:

1. Xn refers to fibre type. For details, see naming rules for optical cables of GL Fiber.
2. For color arrangement of fibres and loose tubes, see the color sequence.
3. D is cable diameter.



Environmental Characteristics:

• Transport/storage temperature: -40℃ to +70℃

Delivery Length:

• Standard length: 2,000m; other lengths are also available

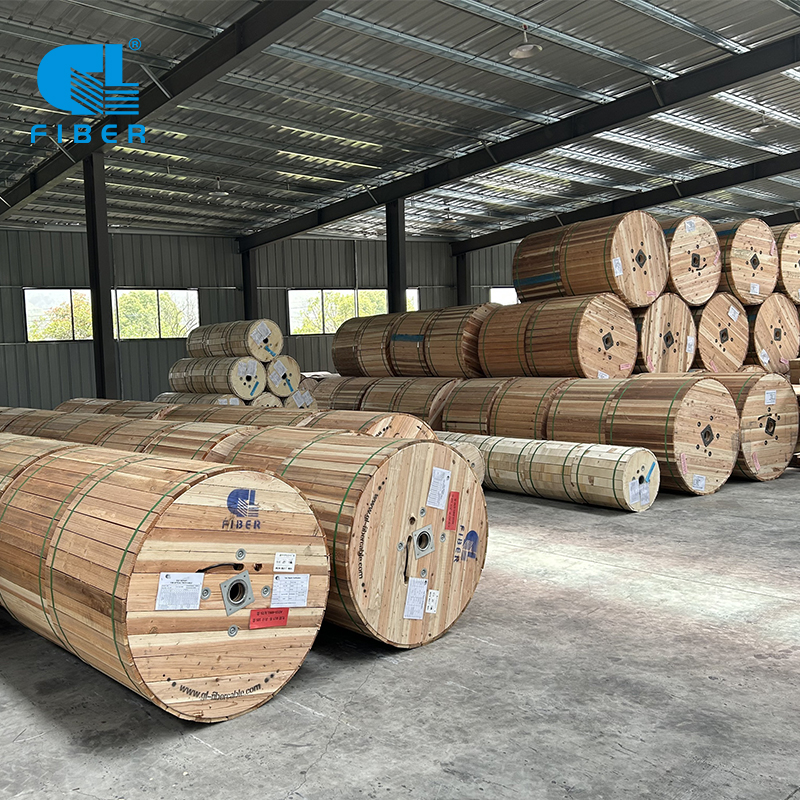

Packing Material:

Non-returnable wooden drum.
Both ends of the fiber optic cables are securely fastened to the drum and sealed with a shrinkable cap to prevent ingress of moisture.
• Each single length of cable shall be reeled on Fumigated Wooden Drum
• Covered by plastic buffer sheet
• Sealed by strong wooden battens
• At least 1 m of inside end of cable will be reserved for testing.
• Drum length: Standard drum length is 3，000m±2%;

Cable printing:

The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.

The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.

1. Cable type and number of optical fiber
2. Manufacturer name
3. Month and Year of Manufacture
4. Cable length

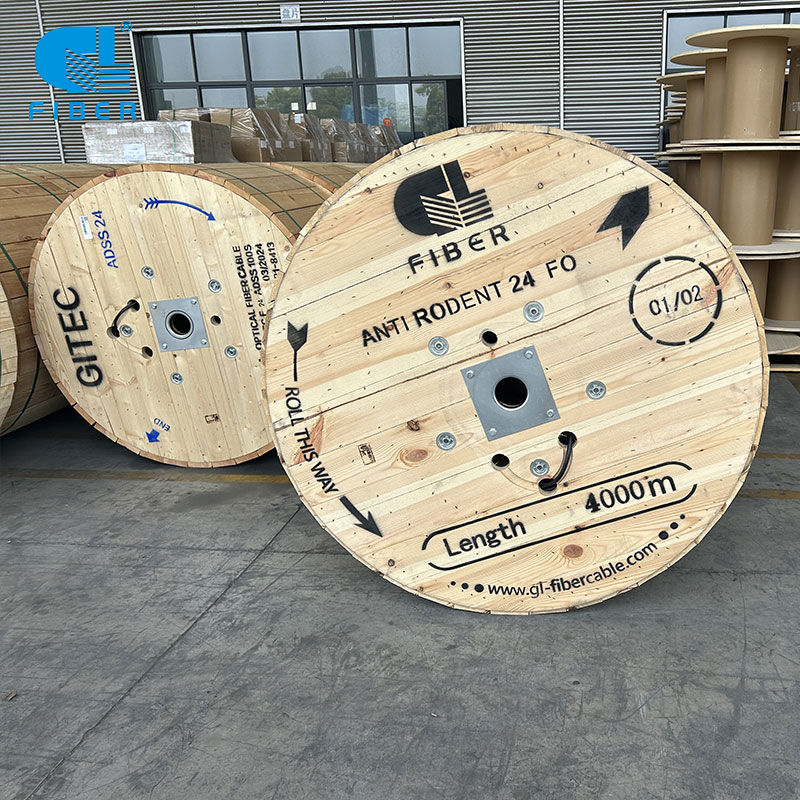

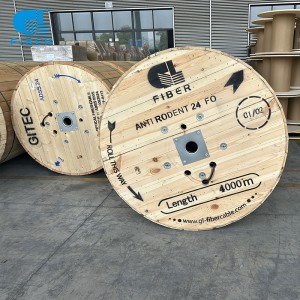

Drum marking:

Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with the following:

1. Manufacture name and logo
2. Cable length
3. Fiber cable types and number of fibers,etc
4. Rollway
5. Gross and net weight

Port:
Shanghai/Guangzhou/Shenzhen

Lead Time：

Note:The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.

Remark:  The cables are packed in carton, coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.
