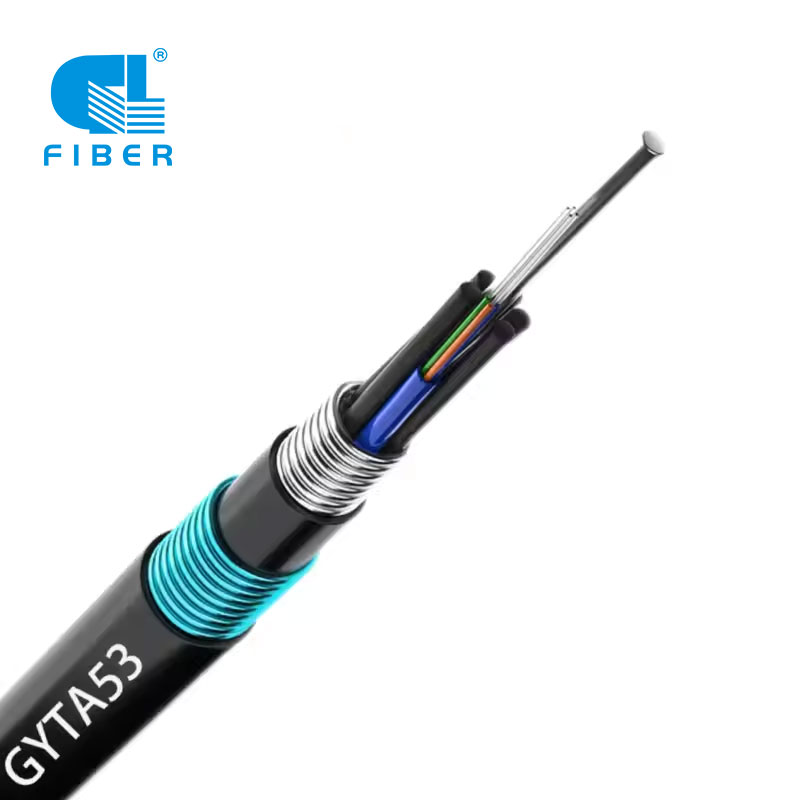

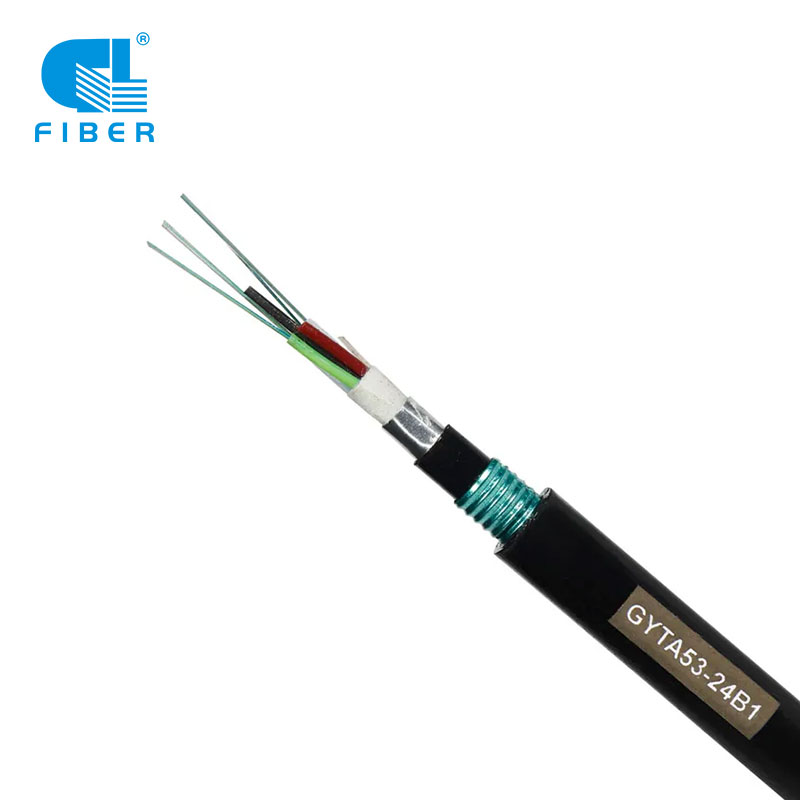

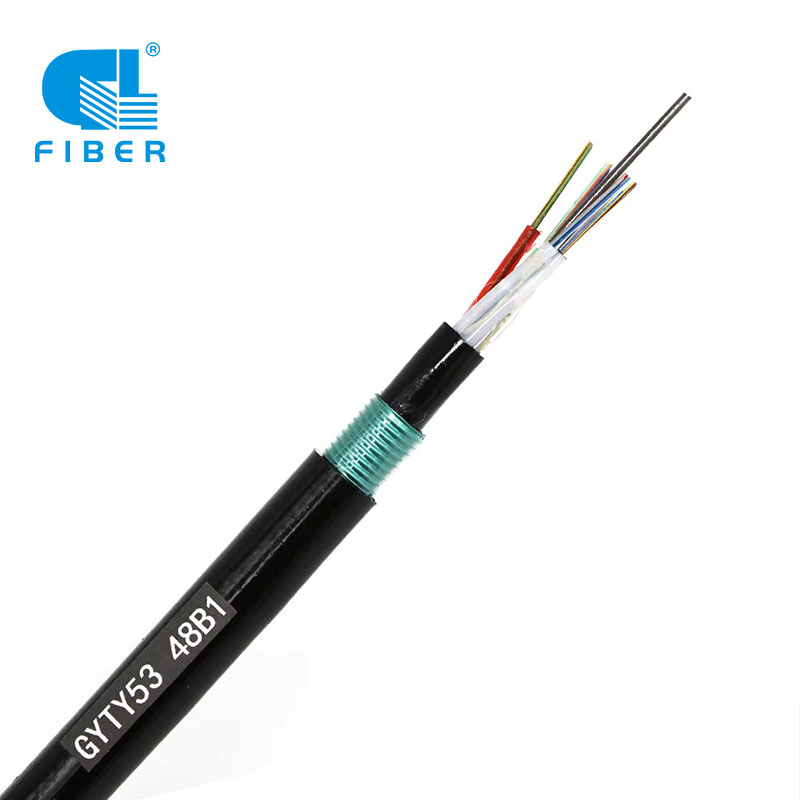

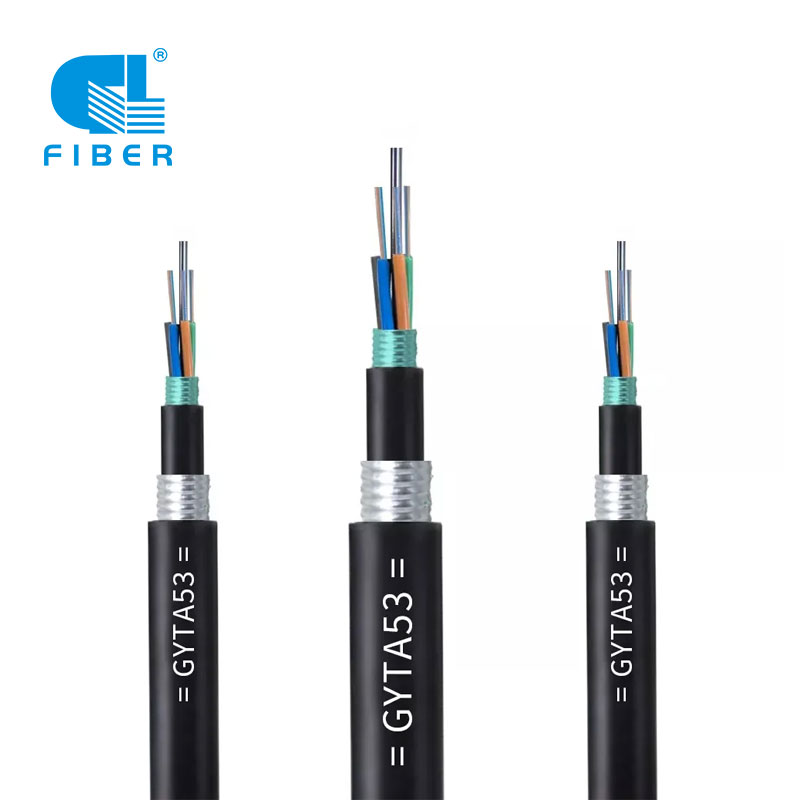

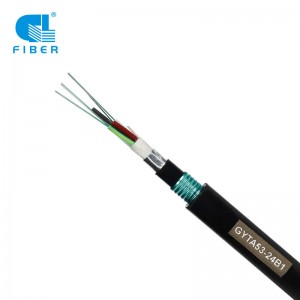

Direct Buried Double Armored Double Jacket Fiber Optic Cable GYTA53

In the GYTA53 cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. An Aluminum Polyethylene Laminate(APL) is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a thin PE sheath. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.

Product Name: Stranded Loose Tube Cable with Aluminum Tape and Steel Tape(Double Sheaths GYTA53).

Brand Place of Origin: GL FIBER,China (Mainland)

Application: Adopted to Outdoor distribution. Suitable for aerial, and direct-burial method. Long distance and local area network communication.

Starting custom your ideal size By E-mail: [email protected]

Send email to us Open Whats App

Description

Specification

Package & Shipping

Factory Show

Leave Your Feedback

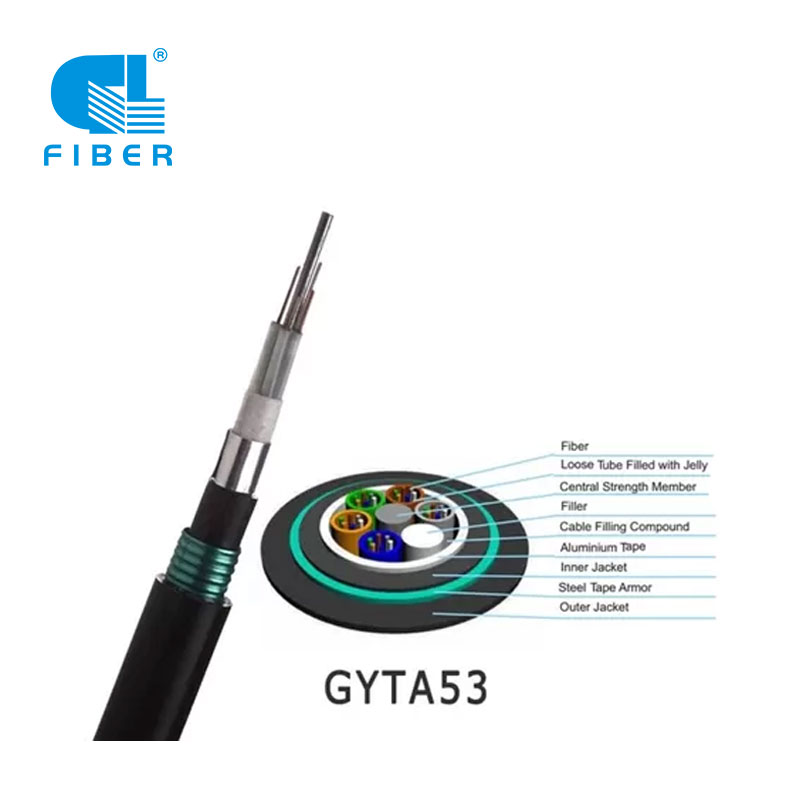

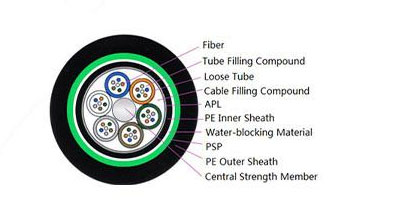

Cable Section Design:

Application:

Aerial/Duct/Outdoor

Characteristic:

1. The following measures are taken to ensure the water blocking performance of the cable.
2. Single steel wire used as the central strength Member.
3. Special water-blocking filling compound in the loose tube.
4. 100% cable core filling,APL and PSP moisture barrier.

Temperature Rage:

Operating :-40℃ to +70℃ Storage :-40℃ to +70℃

Standards:

Comply with stand YD/T 901-2009 as well as IEC 60794-1

Optical Fiber Characteristics:

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

GYTA53 CableTechnical Parameters:

Cable Type (increased by 2fibers)	Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile Strength Long/Short Term( N)	Crush ResistanceLong/Short Term (N/100mm)	Bending RadiusStatic/ Dynamic (mm)
GYTA53 2 ~ 36	2 ~ 36	13.7	190	1000/3000	1000/3000	10D/20D
GYTA53 38 ~ 72	38 ~ 72	15.3	229	1000/3000	1000/3000	10D/20D
GYTA53 74~96	74~96	15.9	244	1000/3000	1000/3000	10D/20D
GYTA53 98 ~120	98 ~120	18.0	288	1000/3000	1000/3000	10D/20D
GYTA53 122 ~144	122 ~144	19.2	325	1000/3000	1000/3000	10D/20D

Note : This datasheet can only be a reference, For special request. Please contact our salesman for more detailed information.
