Monomodo Fibra Optica 48hilos Span100 Autoportante Aereo Cable De Fibra Optica (ADSS)

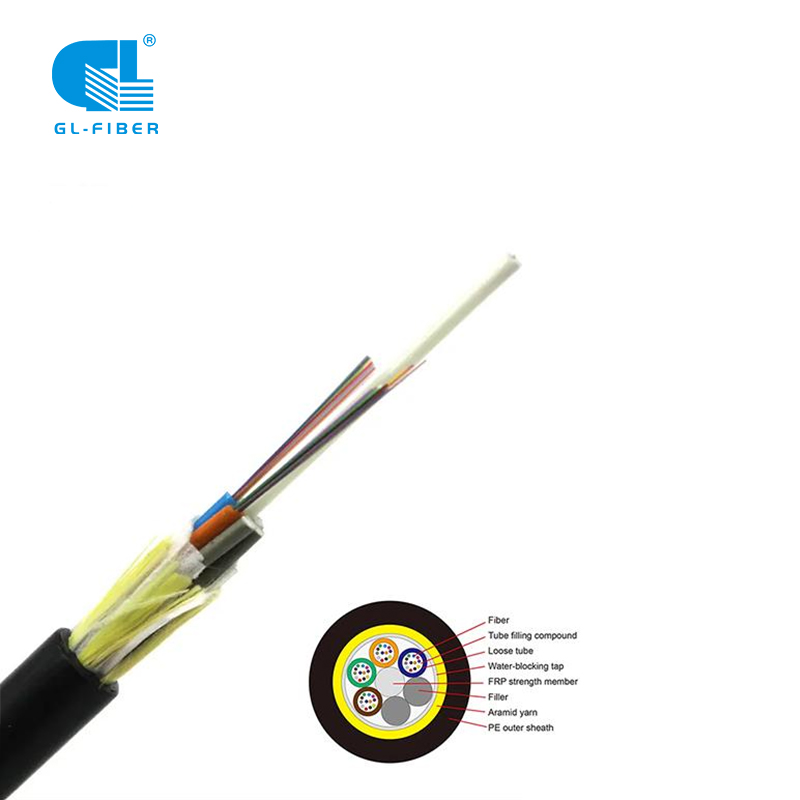

The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member to form the cable core. Water Blocking yarn and water blocking tape used in the cable core to prevent water penetration. Then Aramid Yarn to reinforce . Finally, PE or AT outer jacket is extruded.

Main Features:

Fiber counts: 48 core
Fiber type: Single mode fiber G652.D
Central Strength Member: FRP
Additional Strength Member: Kevlar Aramid Yarn
Outer Jacket: MDPE/ HDPE
Application: Self-supporting overhead laying, Electric no power off installation
Moisture Resistance: Water-blocking Yarn & Water-blocking Tape
Span customized: 80/100/120/150/200/250m etc.

Send email to us Open Whats App

Description

Specification

Package & Shipping

Factory Show

Leave Your Feedback

ADSS Single Jacket All-Dielectric Self-Supporting Fiber optic cable is idea for installation in distribution as well as transmission envirline installations are required as its name indicates, there is no support or messenger wire required, so installation is achieved in a single pass.Structural features:Single layer ,Loose tube stranding, Non-metal strength member, Half dry water-blocking, Aramid yarn strength member, PE outer jacket. Includes 2 core, 4 core, 6 core, 8 core, 12 core, 16 core, 24 core, 36 core, 48 core, 96 core, up to 144 core.

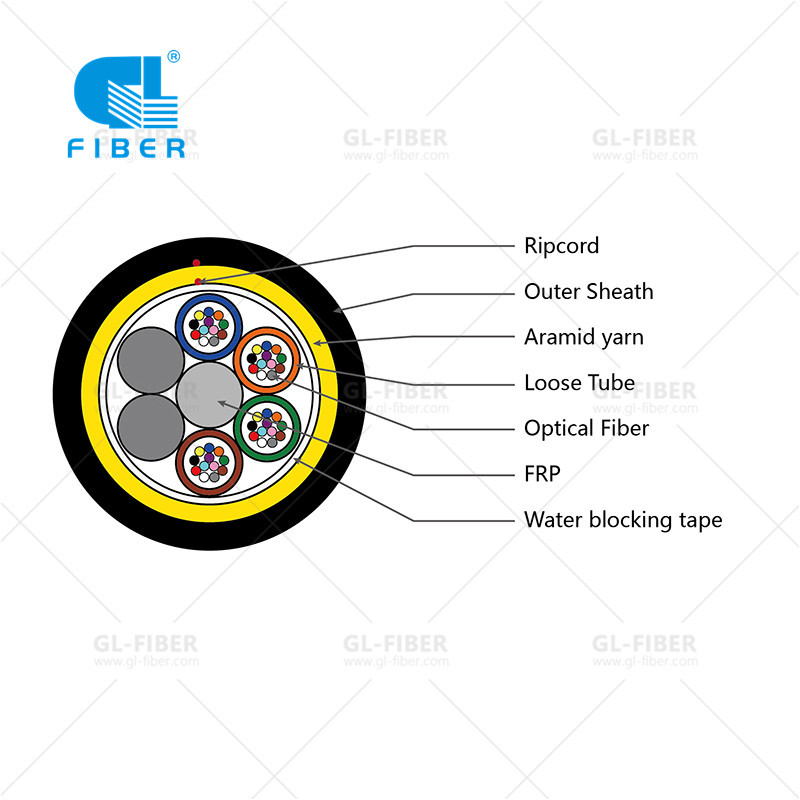

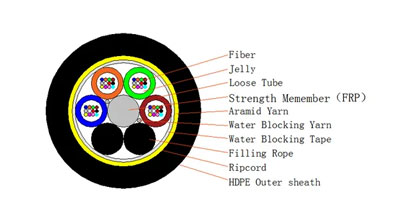

Cable Section:

Main Features:

• It can be installed without power off.
• Easy to install with light weight and small diameter
• Customized span length (up to 1000 meters) suitable for different requirements
• Excellent mechanical and environmental performance
• Good water resistance performance
• Gel-filled loose tube protects the fiber well

Write your message here and send it to us

Item	Value
Span	100m
Fiber Counts	12	24	48	96
Tubes	2	4	4	8
Tube Material	PBT
Filling Rope	4	2	1	0
Fiber Counts/ Tube	6	6	12	12
Fiber Identification	Blue Orange Green Brown Grey White	Blue Orange Green Brown Grey White	Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua	Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua
OD of Tube	1.8±0.1 mm	1.8±0.1 mm	2.1±0.1 mm	2.1±0.1 mm
Thickness of Tube	0.30±0.05 mm	0.30±0.05 mm	0.32±0.05 mm	0.32±0.05 mm
Color of Tube	Blue Orange	Blue Orange Green Brown	Blue Orange Green Brown	Blue Orange Green Brown Grey White Red Black
FRP	1.8 mm	1.8 mm	1.8mm	2.5 mm
PE Coated FRP	-	-	-	3.5 mm
Water Blocking Material	Water Blocking Yarn and Water Blocking Tape
Peripheral Strength Member	Aramid Yarn
Ripcord	Red Polyester *1
Thickness of Sheath	Nominal 1.60 mm
Sheath Material	HDPE
OD of Cable	9.0±0.3 mm	9.0±0.3 mm	9.6±0.3 mm	11.4±0.3 mm
Cable Weight	65 kg/km	65 kg/km	75 kg/km	105 kg/km

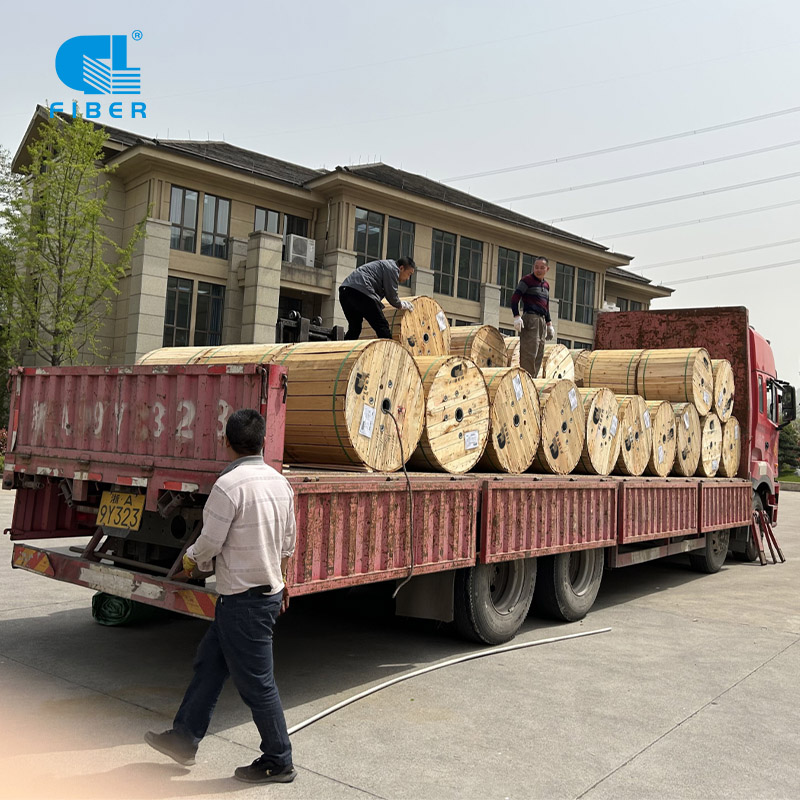

Packing Material:

Non-returnable wooden drum.
Both ends of the fiber optic cables are securely fastened to the drum and sealed with a shrinkable cap to prevent ingress of moisture.
• Each single length of cable shall be reeled on Fumigated Wooden Drum
• Covered by plastic buffer sheet
• Sealed by strong wooden battens
• At least 1 m of inside end of cable will be reserved for testing.
• Drum length: Standard drum length is 3，000m±2%;

Cable printing:

The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.

The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.

1. Cable type and number of optical fiber
2. Manufacturer name
3. Month and Year of Manufacture
4. Cable length

Length&Packing	2KM	3KM	4KM	5KM
Packing	wooden drum	wooden drum	wooden drum	wooden drum
Size	900750900MM	10006801000MM	10907501090MM	12907201290
Net weight	156KG	240KG	300KG	400KG
Gross weight	220KG	280KG	368KG	480KG

Remarks：The reference cable diameter 10.0MM and the span 100M. For specific specifications, please ask the sales department.

Drum marking:

Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with the following:

1. Manufacture name and logo
2. Cable length
3. Fiber cable types and number of fibers,etc
4. Rollway
5. Gross and net weight
