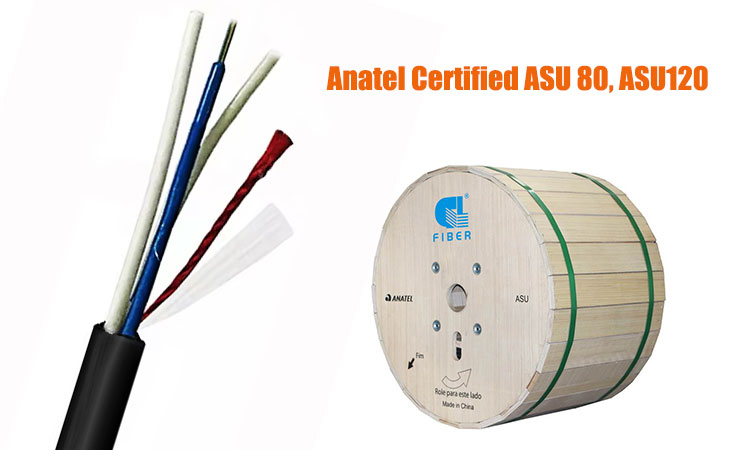

The ASU cable artfully blends sturdiness and practicality. Its aerial, compact, dielectric design is reinforced with two fiber-reinforced polymer (FRP) elements, ensuring resistance to electromagnetic interference and enhancing performance. Additionally, its superb protection against humidity and UV rays ensures durability, even under the harshest conditions.
In terms of installation, the ASU cable is self-supporting, catering to spans of 80, 100, and 120 meters based on customer requirements. It is supplied on high-strength, durable reels typically spanning 3 km, facilitating easy transportation and field handling.
Main Features:
·Small Size and Ligth Weight
·Two FRP as strength member to provide good tensile performance
·Gel Filled or gel free , good waterproof performance
·Low price ,high fiber capacity
·applicable for short span aerial and duct installation
Standards:
GYFFY fiber Optic cable according to YD/T 901-2018、GB/T13993 、IECA-596、GR-409、IEC794 and so on standard
Optical Fiber Specification:
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
| Atenuation (+20℃) |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
|
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
| Bandwidth （Class A） |
@850 |
|
|
≥200MHZ·km |
≥200MHZ·km |
|
@1300 |
|
|
≥500MHZ·km |
≥500MHZ·km |
|
|
Numerical Aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable cut-off wavelength |
|
≤1260nm |
≤1480nm |
|
|
ASU Cable Technical Pameters:
| Cable Core |
Unit |
2F |
4F |
6F |
8F |
10F |
12F |
|
No. Of Tubes |
1 |
1 |
1 |
1 |
1 |
1 |
|
|
No. Of fibers |
core |
2 |
4 |
6 |
9 |
10 |
12 |
|
Fiber Counts in tube |
core |
2 |
4 |
6 |
9 |
10 |
12 |
|
Cable Diameter |
mm |
6.6±0.5 |
6.8±0.5 |
||||
|
Cable Weight |
Kg/km |
40±10 |
45±10 |
||||
|
Allowable tensile Strength |
N |
Span=80，1.5*P |
|||||
|
Allowable crush resistance |
N |
1000N |
|||||
|
Operation temperature |
℃ |
-20℃ to +65℃ |
|||||
