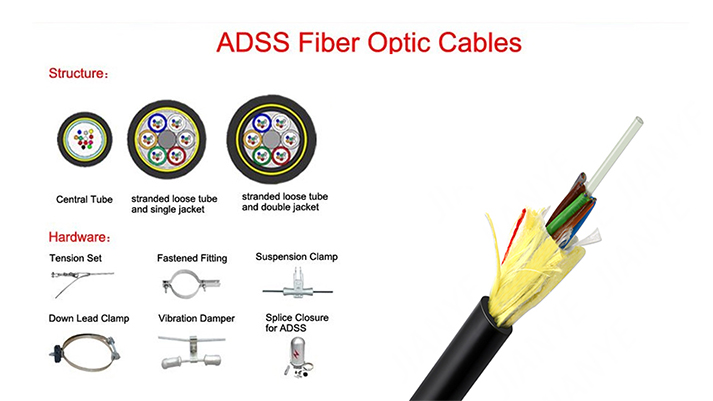

All-Dielectric Self-Supporting (ADSS) fiber optic cables are revolutionizing communication networks, particularly in power utility and telecom infrastructures. Their dielectric (non-metallic) design eliminates electromagnetic interference risks, while their self-supporting capability reduces installation complexity. One critical factor influencing their adoption is fiber core count, which determines bandwidth capacity and scalability. This article explores ADSS cables with core configurations ranging from 6 to 288 fibers, highlighting their applications, technical specifications, and suitability for modern connectivity demands.
Core Count Basics: Why It Matters
The number of fiber cores in an ADSS cable defines its data transmission capacity. Lower core counts (e.g., 6–24) are ideal for localized networks, while higher counts (96–288) cater to backbone infrastructure requiring massive bandwidth. Below, we break down the use cases and technical considerations for each core range.
1. Low-Core ADSS Cables (6–24 Fibers)
Applications:
6–12 Core: Small-scale utility communication systems, rural broadband projects, or redundant links in industrial campuses.
24 Core: Medium-capacity networks, such as municipal traffic control systems or distributed antenna systems (DAS) for cellular coverage.
Technical Highlights:
Compact Design: Lightweight, with a smaller diameter for easy installation on existing power lines.
Cost-Effective: Lower fiber counts reduce material costs, ideal for budget-conscious deployments.
Standards Compliance: Meets IEC 60794-4-20 for mechanical performance and optical consistency.
2. Mid-Core ADSS Cables (36–48 Fibers)
Applications:
36 Core: Regional telecom networks, smart grid substations, or enterprise campus backbones.
48 Core: High-density urban FTTH (Fiber-to-the-Home) deployments or 5G fronthaul/backhaul links.
Technical Highlights:
Balanced Capacity: Optimized for growing bandwidth needs without overengineering.
Enhanced Protection: Features loose tube designs filled with water-blocking gel, ensuring reliability in humid or rainy climates.
Temperature Resilience: Operates in -40°C to +70°C, suitable for temperate and subtropical zones.
3. High-Core ADSS Cables (96–144 Fibers)
Applications:
96 Core: Long-haul telecom backbones, inter-city power grid communications, or data center interconnects.
144 Core: National broadband initiatives, hyperscale cloud networks, or redundancy for critical infrastructure (e.g., airports, seaports).
Technical Highlights:
High Density: Utilizes ribbon fiber technology to pack more cores into a compact structure.
Tensile Strength: Reinforced with aramid yarns and double-jacketed sheathing (PE + AT/UV-resistant layers) for spans up to 800 meters.
Pollution Resistance: Optional anti-tracking (AT) sheaths for installations near high-voltage transmission lines.
4. Ultra-High-Core ADSS Cables (288 Fibers)
Applications:
288 Core: Future-proof backbone networks, mega-city smart grids, or transcontinental submarine cable terrestrial extensions.
Technical Highlights:
Maximum Scalability: Ribbonized fibers enable rapid splicing and maintenance.
Heavy-Duty Construction: Includes trapezoidal loose tubes and vibration dampers for spans exceeding 1,000 meters.
Fire Safety: Available with LSZH (Low-Smoke Zero-Halogen) sheathing for urban tunnels or metro systems.
Key Technical Specifications Across Core Counts
Regardless of fiber numbers, most ADSS cables share these critical features:
All-Dielectric Design: No metallic components, eliminating corrosion and lightning risks.
Optical Performance: Single-mode fibers (G.652.D/G.657.A1) with attenuation ≤0.36 dB/km at 1,550 nm.
Mechanical Strength: Minimum bending radius of 20× cable diameter and crush resistance up to 3,000 N/10 cm.
Environmental Durability: UV-resistant, rodent-proof, and waterproof (IP68 rating).
Choosing the Right Core Count: Factors to Consider
Current vs. Future Needs: Overprovisioning with higher cores (e.g., 144 or 288) accommodates bandwidth growth.
Span Length: Higher-core cables may require additional reinforcement for long spans.
Installation Environment: Coastal or industrial areas demand AT or FR (Fire Retardant) variants.
Cost vs. ROI: While 288-core cables offer scalability, they may be overkill for small utilities.
Global Market Trends
Developed Regions (North America, Europe): Preference for 48–144 cores in smart grid and 5G projects.
Emerging Markets (Asia, Africa): Rising demand for 24–96 cores in rural electrification and mobile broadband expansion.
Manufacturers: Leading suppliers like Prysmian, Fujikura, and Corning offer customizable ADSS solutions across core ranges.
Conclusion
ADSS cables with 6–288 cores provide unparalleled flexibility for modern optical networks. Lower-core models deliver cost efficiency for localized projects, while ultra-high-core configurations future-proof large-scale infrastructure. By aligning core count with technical requirements and environmental conditions, network planners can optimize performance, scalability, and longevity. As global data consumption surges, ADSS cables—with their adaptability and resilience—will remain pivotal in bridging the digital divide.
