As a leading OPGW manufacturer with 21 years of expertise, GL FIBER® delivers high-performance OPGW cable solutions tailored to your exact project requirements. Our OEM & custom OPGW services are built on four critical design elements:
1️⃣ Custom Diameter – Optimized for Installation & Performance
We engineer OPGW cables in precise diameters (8mm~20mm) to match:
- Tower loading capacity
- Wind & ice load conditions
- Compatibility with existing hardware

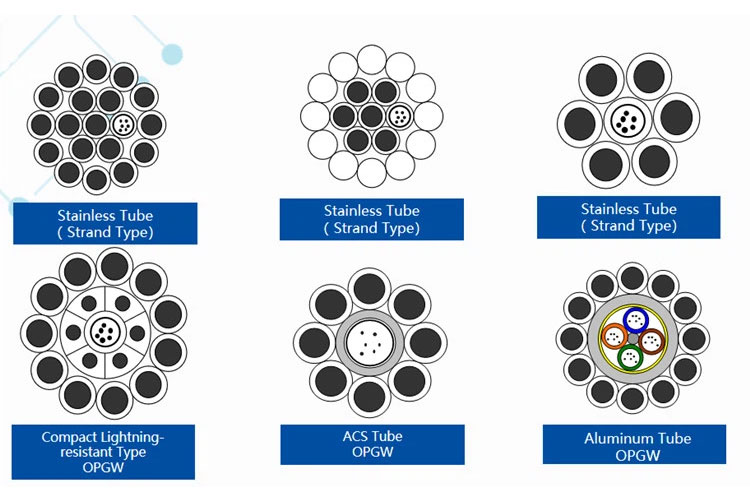

2️⃣ Cross-Section Design – Balanced Electrical & Mechanical Properties
Our proprietary multi-layer stranding technology combines:
- Aluminum-clad steel (ACS) wires – Superior conductivity & corrosion resistance
- Stainless steel tubes – Crush-resistant fiber protection
- Custom alloy ratios – Tailored to fault current requirements
3️⃣ Short-Circuit Current Capacity – Grid Safety Assurance
Every design undergoes IEC 60794-4-1 thermal stability tests for:
- 20kA~63kA fault current withstand
- <200°C conductor temperature during faults
- Zero fiber attenuation spikes post-fault
4️⃣ Rated Tensile Strength (RTS) – Engineered for Long Spans
We validate RTS (24kN~120kN range) through:
- Full-scale tensile testing (per IEEE 1138)
- Stranding angle optimization for stress distribution
- Dynamic sag-tension modeling
Why Partner With GL FIBER®?

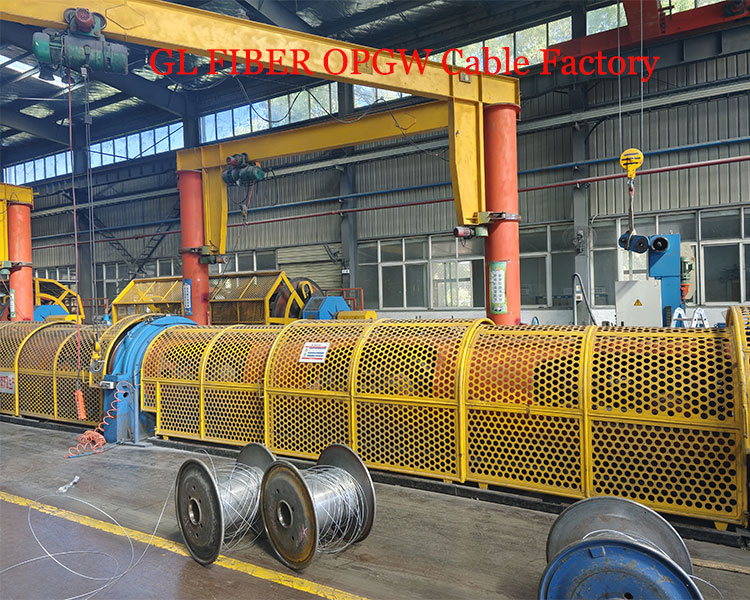

✅ 200KM Daily Production Capacity – Scalable for mega projects
✅ ISO 9001 & 14001 Certified – Quality & environmental compliance
✅ Complete Type Testing – Including:
- IEC 60794-1-2 (Mechanical)
- IEC 60794-1-3 (Environmental)
- IEEE 1138 (Electrical)
Global OPGW Supplier for Utilities & EPCs
From 230kV~1000kV transmission lines, our OPGW OEM solutions power grids across Africa, Asia, and the Middle East.
Request a quote today for project-specific OPGW designs!
