In today's hyper-connected world, reliable and durable fiber optic cables are essential for delivering high-speed broadband services. The G657A1/G657A2/G652D LSZH Jacket FTTH Drop Cable series, including models like GJYXCH, GJYXFCH, and GJYXKCH, represents a cutting-edge solution for outdoor fiber-to-the-home (FTTH) deployments. Designed to withstand harsh environmental conditions while ensuring superior signal integrity, these cables are ideal for last-mile connectivity in residential, commercial, and industrial settings.
Key Features & Benefits
Advanced Fiber Types for Optimal Performance
G657A1/A2 Fibers: These bend-insensitive fibers minimize signal loss even in tight bends or complex installations, making them perfect for dense urban environments or indoor-outdoor transitions.
G652D Fiber: A standard single-mode fiber optimized for long-distance transmission, ensuring compatibility with existing network infrastructure.
LSZH (Low Smoke Zero Halogen) Jacket
The LSZH outer sheath enhances safety by reducing toxic fumes and corrosive gases in case of fire. This makes the cable suitable for use in confined spaces, public buildings, and areas with strict fire safety regulations.
Robust Outdoor Design
Engineered for outdoor durability, the cable features:
- Weather Resistance: UV-resistant materials protect against sunlight, rain, and temperature fluctuations (-40°C to +70°C).
- Crush and Impact Resistance: Reinforced structures (e.g., armored versions in GJYXFCH/GJYXKCH) guard against physical damage.
- Lightweight & Flexible: Easy to install aerially, in ducts, or along walls without compromising performance.
FTTH-Optimized Construction
The compact design reduces footprint while maintaining tensile strength. The drop cable supports fast splicing and termination, streamlining field deployments for service providers.

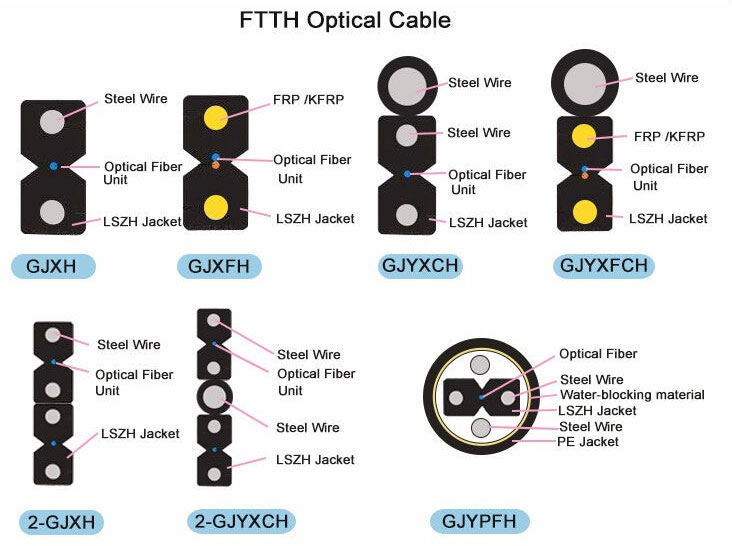

Model Variations: GJYXCH, GJYXFCH, GJYXKCH
GJYXCH: A non-metallic, self-supporting cable with aramid yarn reinforcement for aerial installations.
GJYXFCH: Features a flat design and steel wire reinforcement for added tensile strength in rugged environments.
GJYXKCH: Armored with corrugated steel tape for maximum protection against rodents and mechanical stress.
Applications
1. Outdoor FTTH Networks: Connecting distribution points to end-user premises.
2. Aerial or Duct Deployments: Suitable for pole-to-pole or underground installations.
3. Industrial Campuses & Smart Cities: Resilient connectivity for IoT, surveillance, and 5G backhaul.
Why Choose This Cable Series?
Future-Proof: Supports high-bandwidth applications like 10G/25G PON and beyond.
Compliance: Meets ITU-T, IEC, and RoHS standards.
Cost-Effective: Low maintenance and long service life reduce total ownership costs.
Whether upgrading existing infrastructure or deploying new networks, the G657A1/G657A2/G652D LSZH FTTH Drop Cable series delivers the reliability, flexibility, and safety required for modern connectivity challenges. Contact us today to customize solutions for your project!
