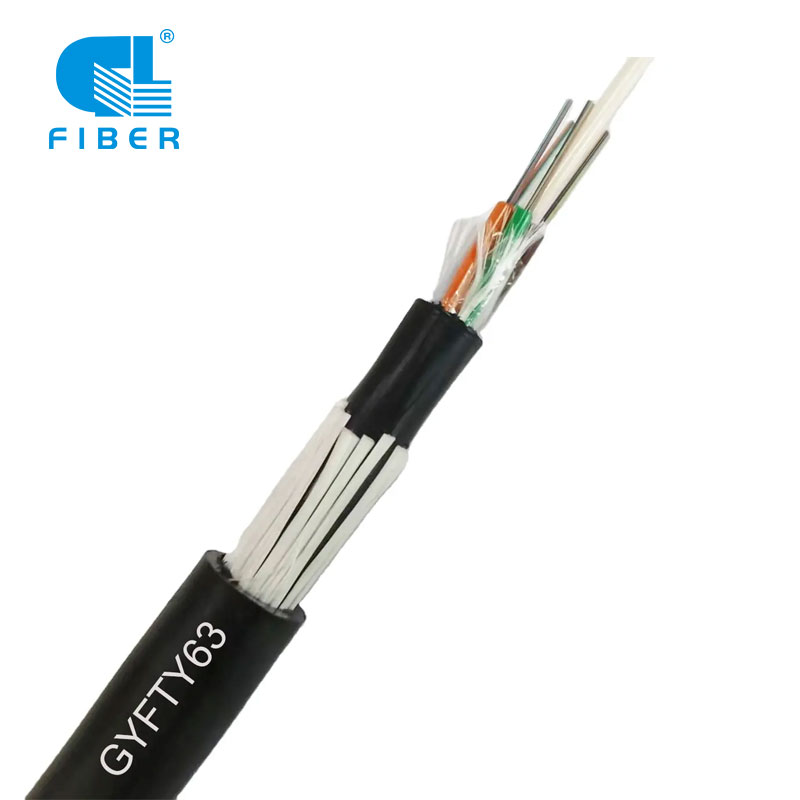

Non-metal Double Sheath Anti Rodent & Direct Burried Fiber Optic Cable-GYFTY63

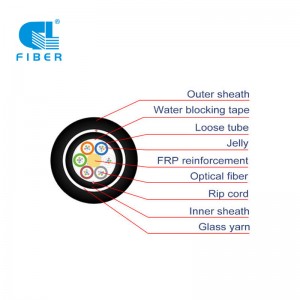

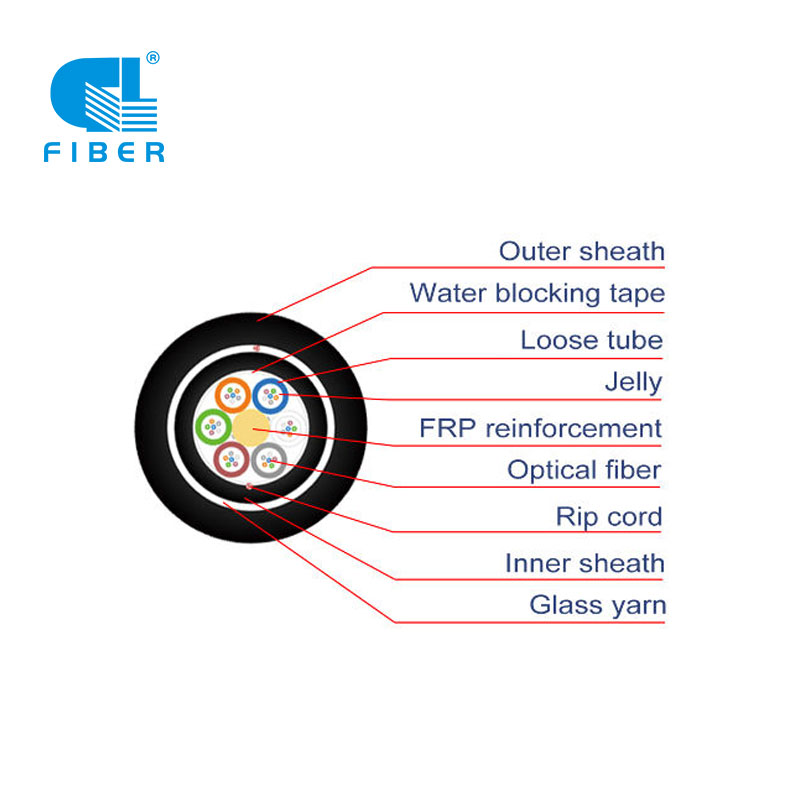

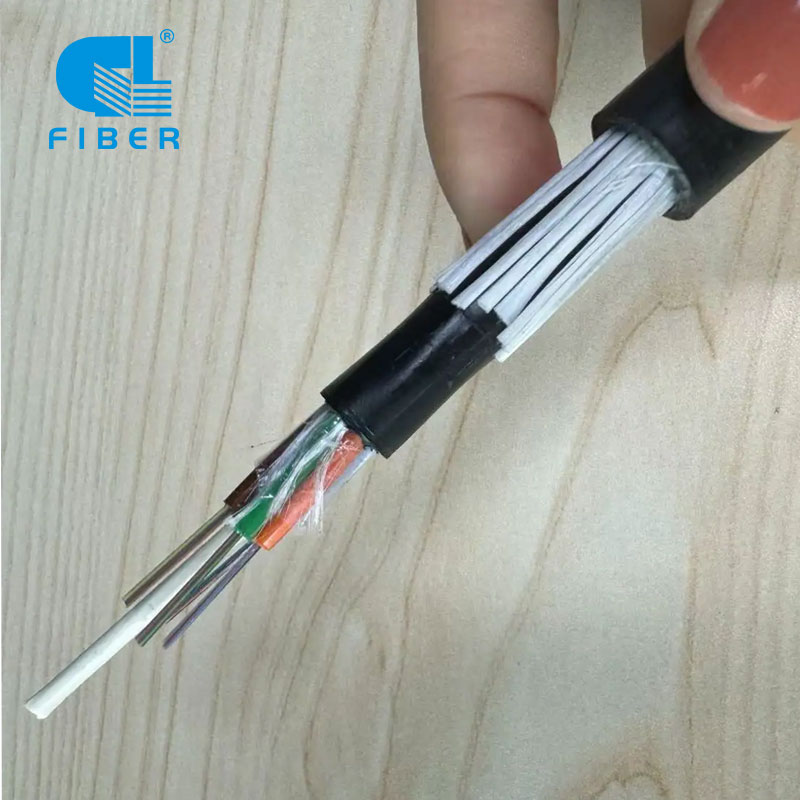

Product Construction:

Fiber: 2-144 fibers
loose tube gel-filled
Central Strength Member: FRP (Fiber reinforce plastic)
Armor: Corrugated steel tape
Inner Sheath: Black UV and moisture-resistant polyethylene (PE).
Outer Sheath: Black UV and moisture-resistant polyethylene (PE).

Features:

Excellent mechanical and temperature performance.
Loose tube gel-filled construction for superior fiber protection.
100% core filling water prevent cable jelly to ensure the cable watertight.
Crush resistance and flexibility.
Outer sheath UV protection and waterproof design.

Applications:

Interbuilding voice or data communication backbones.
Installed in ducts, underground conduits.

Packing Material:

Non-returnable wooden drum.
Both ends of the fiber optic cables are securely fastened to the drum and sealed with a shrinkable cap to prevent ingress of moisture.
• Each single length of cable shall be reeled on Fumigated Wooden Drum
• Covered by plastic buffer sheet
• Sealed by strong wooden battens
• At least 1 m of inside end of cable will be reserved for testing.
• Drum length: Standard drum length is 3，000m±2%;

Cable printing:

The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.

The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.

1. Cable type and number of optical fiber
2. Manufacturer name
3. Month and Year of Manufacture
4. Cable length

	Length&Packing	2KM	3KM	4KM	5KM
	Packing	wooden drum	wooden drum	wooden drum	wooden drum
	Size	900*750*900MM	1000*680*1000MM	1090*750*1090MM	1290*720*1290
	Net weight	156KG	240KG	300KG	400KG
	Gross weight	220KG	280KG	368KG	480KG

Remarks：The reference cable diameter 10.0MM and the span 100M. For specific specifications, please ask the sales department.

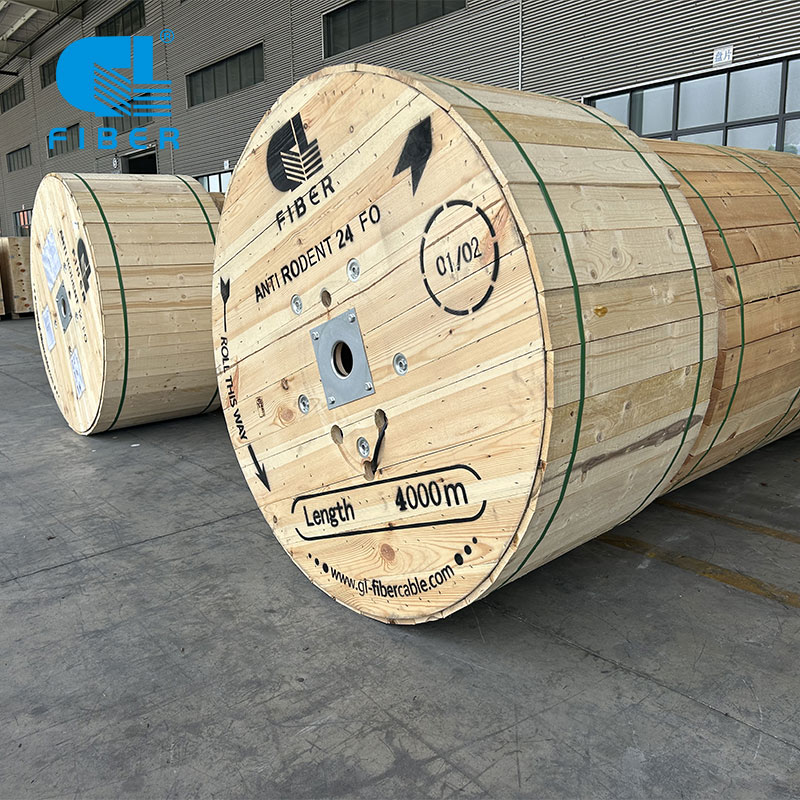

Drum marking:

Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with the following:

1. Manufacture name and logo
2. Cable length
3. Fiber cable types and number of fibers,etc
4. Rollway
5. Gross and net weight

Packing Material:

Non-returnable wooden drum.
Both ends of the fiber optic cables are securely fastened to the drum and sealed with a shrinkable cap to prevent ingress of moisture.
• Each single length of cable shall be reeled on Fumigated Wooden Drum
• Covered by plastic buffer sheet
• Sealed by strong wooden battens
• At least 1 m of inside end of cable will be reserved for testing.
• Drum length: Standard drum length is 3，000m±2%;

Cable printing:

The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.

The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.

1. Cable type and number of optical fiber
2. Manufacturer name
3. Month and Year of Manufacture
4. Cable length

Drum marking:

Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with the following:

1. Manufacture name and logo
2. Cable length
3. Fiber cable types and number of fibers,etc
4. Rollway
5. Gross and net weight

Remark:  The cables are packed in carton, coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.
