Umugozi wa Micro Module numuyoboro wogukoresha cyane kandi byoroshye USB. Yashizweho kugirango itange uburyo bwizewe kandi bworoshye bwo kwishyuza hamwe nubunararibonye bwo guhuza amakuru kubikoresho bitandukanye bya elegitoroniki nibikoresho bisaba guhuza USB USB.
Igishushanyo mbonera:
• Nibyiza kumiyoboro iri hanze.
• Imbaraga zikwiye.
• Gukoresha mumiyoboro nyamukuru, imiyoboro yo gukwirakwiza cyangwa imiyoboro yaho.

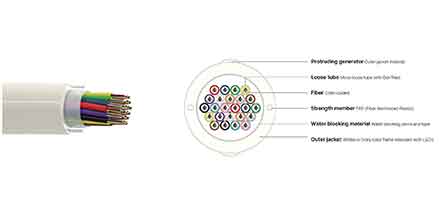

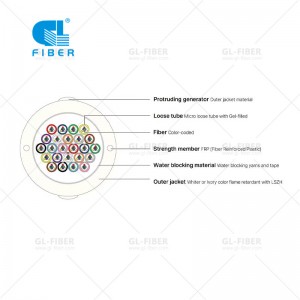

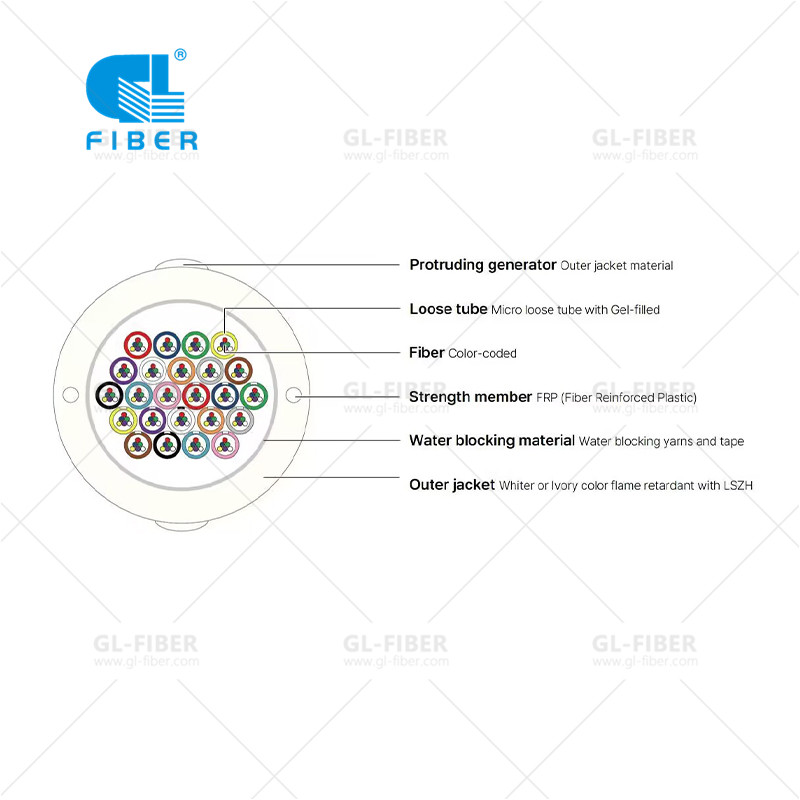

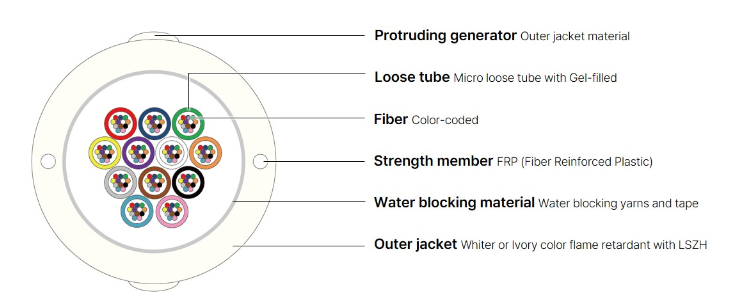

Module ikubiye mumashanyarazi ya micro-module yoroheje 55% kurenza imiyoboro isanzwe irekuye, bigatuma umwanya ugabanuka wa fibre. Guhindura module birinda rwose ibyago byo kunama kuri 45 ° (nta ngaruka ya kink) .completamente el riesgo de dobleces 45 ° (Sin efecto Kink).
• Module irinzwe hamwe nibintu byuzuye
• Biroroshye kandi byoroshye
• Kubona byoroshye fibre
• Kwiyambura byoroshye
| Fibre | Buffer (μm) | Kwiyongera (dB / Km) | |||
|---|---|---|---|---|---|
| SM | |||||
| 1310nm | 1383nm | 1550nm | 1625nm | ||
| G652.D | 250 | ≤0.40 | - | ≤0.30 | - |
| G657.A2 | ≤0.40 | - | ≤0.30 | - | |
| Fibre | Kubara fibre | Fibre kuri tube | Hanze ya diameter [mm] | Uburemere [Kg / Km] | Umuhengeri [N] |
|---|---|---|---|---|---|
| G652.D G657.A2 | 6 | 6 | 6.0 ± 0.5 | 30 | 600 |
| 12 | 12 | 6.0 ± 0.5 | 30 | 600 | |
| 24 | 12 | 6.5 ± 0.5 | 37 | 600 | |
| 36 | 12 | 7.0 ± 0.5 | 40 | 600 | |
| 48 | 12 | 7.5 ± 0.5 | 47 | 600 | |
| 72 | 12 | 9.5 ± 0.5 | 74 | 600 | |
| 96 | 12 | 9.5 ± 0.5 | 78 | 600 | |
| 144 | 12 | 11.0 ± 0.5 | 100 | 1000 |
Ubushyuhe bwo gukora [ᴼC]
-40 ~ + 70 ° C.
Icyitonderwa: Indangagaciro zigamije gusa
Igishushanyo mbonera:
• Nibyiza kumiyoboro iri hanze.
• Imbaraga zikwiye.
• Gukoresha mumiyoboro nyamukuru, imiyoboro yo gukwirakwiza cyangwa imiyoboro yaho.
Module ikubiye mumashanyarazi ya micro-module yoroheje 55% kurenza imiyoboro isanzwe irekuye, bigatuma umwanya ugabanuka wa fibre. Guhindura module birinda rwose ibyago byo kunama kuri 45 ° (nta ngaruka ya kink) .completamente el riesgo de dobleces 45 ° (Sin efecto Kink).
• Module irinzwe hamwe nibintu byuzuye
• Biroroshye kandi byoroshye
• Kubona byoroshye fibre
• Kwiyambura byoroshye
| Fibre | Buffer (μm) | Kwiyongera (dB / Km) | |||
|---|---|---|---|---|---|
| SM | |||||
| 1310nm | 1383nm | 1550nm | 1625nm | ||
| G652.D | 250 | ≤0.40 | - | ≤0.30 | - |
| G657.A2 | ≤0.40 | - | ≤0.30 | - | |
| Fibre | Kubara fibre | Fibre kuri tube | Hanze ya diameter [mm] | Uburemere [Kg / Km] | Umuhengeri [N] |
|---|---|---|---|---|---|
| G652.D G657.A2 | 6 | 6 | 6.0 ± 0.5 | 30 | 600 |
| 12 | 12 | 6.0 ± 0.5 | 30 | 600 | |
| 24 | 12 | 6.5 ± 0.5 | 37 | 600 | |
| 36 | 12 | 7.0 ± 0.5 | 40 | 600 | |
| 48 | 12 | 7.5 ± 0.5 | 47 | 600 | |
| 72 | 12 | 9.5 ± 0.5 | 74 | 600 | |
| 96 | 12 | 9.5 ± 0.5 | 78 | 600 | |
| 144 | 12 | 11.0 ± 0.5 | 100 | 1000 |
Ubushyuhe bwo gukora [ᴼC]
-40 ~ + 70 ° C.
Icyitonderwa: Indangagaciro zigamije gusa
Mu 2004, GL FIBER yashinze uruganda rwo gukora ibicuruzwa bya optique, cyane cyane bitanga insinga zitonyanga, insinga ya optique yo hanze, nibindi.
GL Fibre ubu ifite ibice 18 byibikoresho byamabara, ibyiciro 10 byibikoresho bya kabiri bya plastike, ibyuma 15 bya SZ layer ibikoresho byo kugoreka, ibice 16 by ibikoresho byo gukata, ibice 8 by ibikoresho bya kabili bya FTTH, ibikoresho 20 bya OPGW optique, Ibikoresho 1 bisa nibindi bikoresho byinshi bifasha ibikoresho. Kugeza ubu, ubushobozi bwo gukora buri mwaka insinga za optique bugera kuri miriyoni 12 zama kilometero (impuzandengo yumusaruro wa buri munsi ingana na 45.000 km nubwoko bwinsinga zishobora kugera kuri km 1.500). Inganda zacu zirashobora gukora ubwoko butandukanye bwinsinga zo murugo no hanze (nka ADSS, GYFTY, GYTS, GYTA, GYFTC8Y, micro-kabili ihumeka ikirere, nibindi). ubushobozi bwa buri munsi bwo gukora insinga zisanzwe zishobora kugera kuri 1500KM / kumunsi, ubushobozi bwa buri munsi bwo gukora insinga zishobora kugabanuka. 1200km / kumunsi, kandi ubushobozi bwa buri munsi bwa OPGW burashobora kugera kuri 200KM / kumunsi.
