Tilmaamaha ugu Muhiimsan:
★Waxyaabaha Jaakada:OFNR,LSZH,OFNP
★ Qaab dhismeedka xadhkaha fiber-ka: fudud, Duplex, Nooca farabadan, Nooca ribbon.
★ Xidhiidhiyayaasha:￠0.9mm,￠2.0mm,￠3.0mm
★La jaanqaadi kara ROHS
Heerka Farsamada:
Heerka waafaqsanaanta IL: IEC 61300-3-4
Heerka waafaqsanaanta RL: IEC61300-3-6
★Wejiga dhamaadka cabbirka joomatari:
curvityradius: 10 ~ 25mm
Apex Offset: 0 ~ 50um
Fiber ilkaha: +50 -100
★ Guryaha makaanikada:
Waqtiyada xiritaanka: 500 jeer <0.2dB
Codsiyada Farsamo ee Deegaanka:
Deegaanka Gaadiidka & Kaydinta: -40 ℃ ilaa + 85 ℃
Deegaanka hawlgalka: -20 ℃ ilaa + 75 ℃
Qiyaasta Farsamada:
| Muuqaal | SM, MM | |||

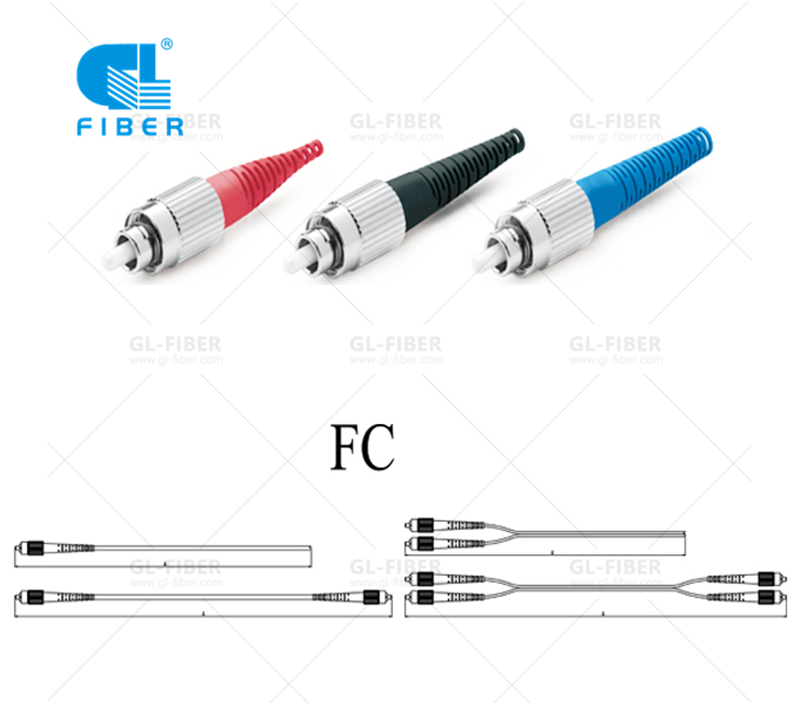

| Nooca xiriiriyaha | FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000 | |||
| Dhexroor (mm) | 0.9,2.0,3.0 | |||
| Polish | MM UPC | MM APC | SM UPC | SM APC |
| Geli Khasaare | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Soo Celinta Khasaaraha | ≥25dB | ≥50dB | ≥60dB | |
| Isdhaafsiga | ≤0.2dB | |||
| Ku celcelinta | ≤0.2dB | |||
| heerkulka kala duwan (℃) | -40~+85 | |||
Haddii aad u baahan tahay IL≤0.25dB, IL≤0.2dB, IL≤0.15dB, warshadda GL FIBER ayaa sidoo kale ku siin karta. nala soo xidhiidh!!!
Halkan ku qor fariintaada oo noo soo dir
Tilmaamaha ugu Muhiimsan:
★Waxyaabaha Jaakada:OFNR,LSZH,OFNP
★ Qaab dhismeedka xadhkaha fiber-ka: fudud, Duplex, Nooca farabadan, Nooca ribbon.
★ Xidhiidhiyayaasha:￠0.9mm,￠2.0mm,￠3.0mm
★La jaanqaadi kara ROHS
Heerka Farsamada:
Heerka waafaqsanaanta IL: IEC 61300-3-4
Heerka waafaqsanaanta RL: IEC61300-3-6
★Wejiga dhamaadka cabbirka joomatari:
curvityradius: 10 ~ 25mm
Apex Offset: 0 ~ 50um
Fiber ilkaha: +50 -100
★ Guryaha makaanikada:
Waqtiyada xiritaanka: 500 jeer <0.2dB
Codsiyada Farsamo ee Deegaanka:
Deegaanka Gaadiidka & Kaydinta: -40 ℃ ilaa + 85 ℃
Deegaanka hawlgalka: -20 ℃ ilaa + 75 ℃
Qiyaasta Farsamada:
| Muuqaal | SM, MM | |||
| Nooca xiriiriyaha | FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000 | |||
| Dhexroor (mm) | 0.9,2.0,3.0 | |||
| Polish | MM UPC | MM APC | SM UPC | SM APC |
| Geli Khasaare | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Soo Celinta Khasaaraha | ≥25dB | ≥50dB | ≥60dB | |
| Isdhaafsiga | ≤0.2dB | |||
| Ku celcelinta | ≤0.2dB | |||
| heerkulka kala duwan (℃) | -40~+85 | |||
Haddii aad u baahan tahay IL≤0.25dB, IL≤0.2dB, IL≤0.15dB, warshadda GL FIBER ayaa sidoo kale ku siin karta. nala soo xidhiidh!!!
Warshada Cable ee indhaha
2004tii, GL FIBER waxay aas aastay warshadan si ay u soo saarto wax soo saarka xadhkaha indhaha, oo inta badan soo saarta xargaha fiilada, xadhiga indhaha dibadda, iwm.
GL Fiber hadda waxay leedahay 18 qaybood oo ah qalabka midabaynta, 10 qaybood oo ah qalabka daahan caagga ah ee labaad, 15 qaybood oo ah qalabka maroojin ee lakabka SZ, 16 qaybood oo ah qalabka wax lagu dhejiyo, 8 qaybood oo ah qalabka wax soo saarka fiilada ee FTTH, 20 qaybood oo ah qalabka fiilada indhaha ee OPGW, iyo 1 qalab isbarbar socda iyo qalab kale oo badan oo wax soo saarka ah. Waqtigan xaadirka ah, awoodda wax-soo-saarka fiilooyinka indhaha ee sannadlaha ah waxay gaartaa 12 milyan-core-km (celceliska awoodda wax-soo-saarka maalinlaha ah ee 45,000 core km iyo noocyada fiilooyinka waxay gaari karaan 1,500 km). Warshadahayadu waxay soo saari karaan noocyo kala duwan oo ah fiilooyinka gudaha iyo dibaddaba (sida ADSS, GYFTY, GYTS, GYTA, GYFTC8Y, fiilada-yar ee hawada lagu afuufay, iwm.). awoodda wax-soo-saarka maalinlaha ah ee fiilooyinka caadiga ah waxay gaari karaan 1500KM / maalin, awoodda wax-soo-saarka maalinlaha ah ee fiilada dhibcaha waxay gaari kartaa max. 1200km/maalintii, iyo awoodda wax soo saarka maalinlaha ah ee OPGW waxay gaari kartaa 200KM/maalintii.
