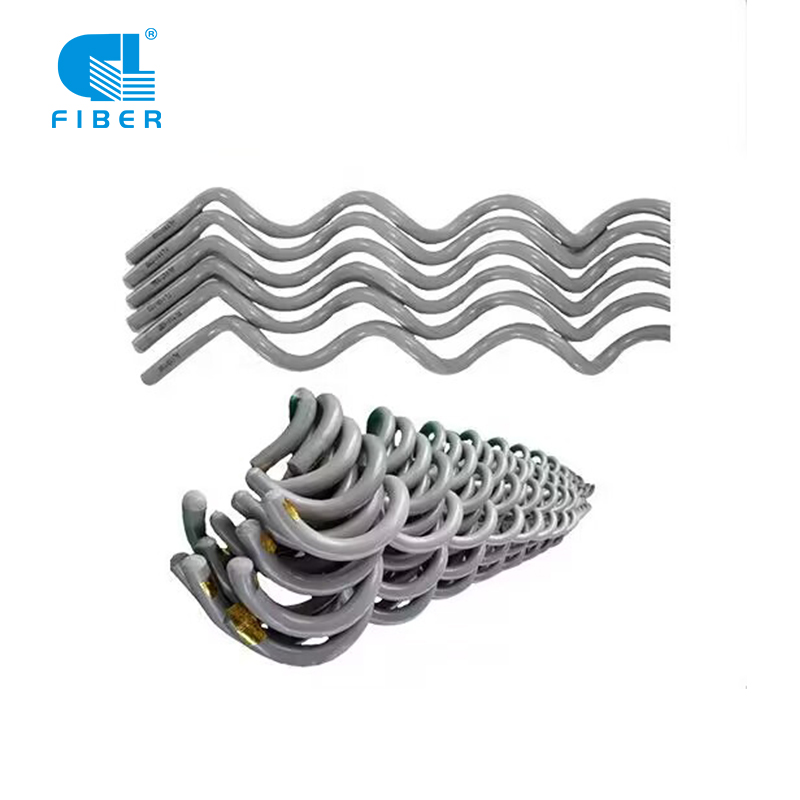

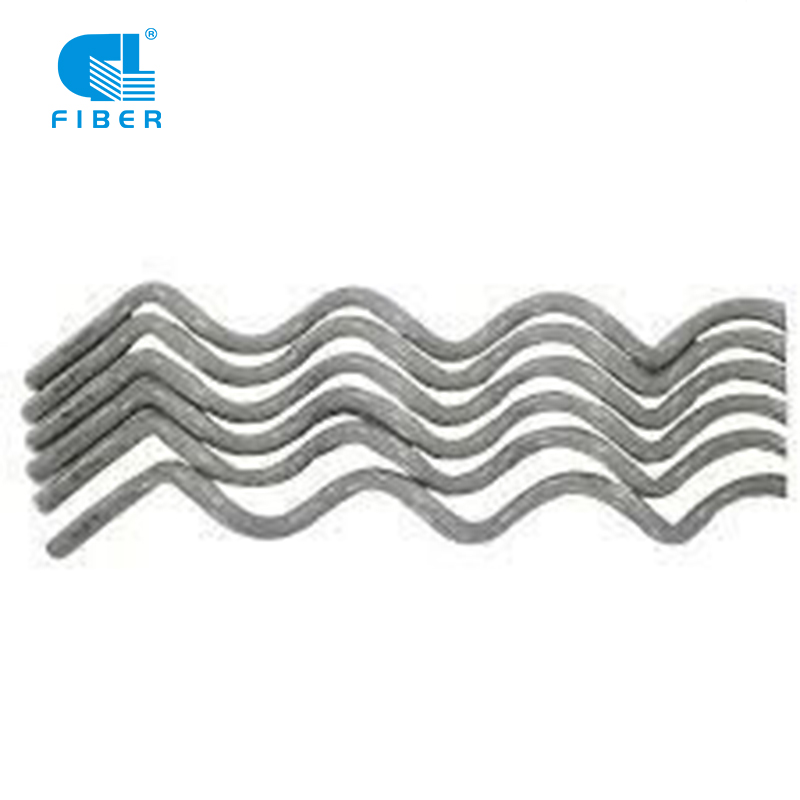

spiral vibration damper is made of high strength, aging resistance, high elasticity and modified PVC materials. It can effectively reduce of the vibration caused by laminar flow on ADSS cable.
spiral vibration damper is made of high strength, aging resistance, high elasticity and modified PVC materials. It can effectively reduce of the vibration caused by laminar flow on ADSS cable.
GL Technology offers a premium & Total Solution which can be installed in a wide variety of transmission lines, we provide 18+ years of experience and excellent solutions for your hardware needs in both ADSS (AlI-Dielectric Self Supporting) and OPGW (Optical Ground Wire) cables. Please follow the links below for assistance in choosing your hardware. Please follow the links below for assistance in choosing your hardware:
● FDH (Fiber Distribution Hub);
● Terminal Box;
● Joint Box;
● P.G. Clamp;
● Earth wire with Cable Lug;
● Tension. Assembly;
● Suspension Assembly;
● Vibrtion Damper;
● Optical Ground Wire (OPGW);
● AlI-Dielectric Self Supporting (ADSS);
● Down Lead Clamp;
● Cable Tray;
● Danger Board;
● Number Plates;
We want to help you ensure the quality of your project. At your request, we will be glad to prepare a customized offer for you!
spiral vibration damper is made of high strength, aging resistance, high elasticity and modified PVC materials. It can effectively reduce of the vibration caused by laminar flow on ADSS cable.
Key Features
High strength, aging resistance, high elasticity
Effectively reduces levels of Aeolian vibration on cables
Specification
Model | Suitable ADSS Cable Diameter (mm) | Length (mm) | Spiral Vibration Damper Diameter (mm) | Weight (kg) |
Material | PVC | |||
ADSS-SVD-D11.7-L1300 | 8.3~11.7 | 1300 | 10.8~12.7 | 0.25 |
ADSS-SVD-D14.3-L1350 | 11.71~14.3 | 1350 | 12.2~14 | 0.35 |
ADSS-SVD-D19.3-L1650 | 14.31~19.3 | 1650 | 12.2~14 | 0.39 |
ADSS-SVD-D23.5-L1750 | 19.31~23.5 | 1750 | 15~17 | 0.45 |
Application
Effectively reduces levels of Aeolian vibration on cables
