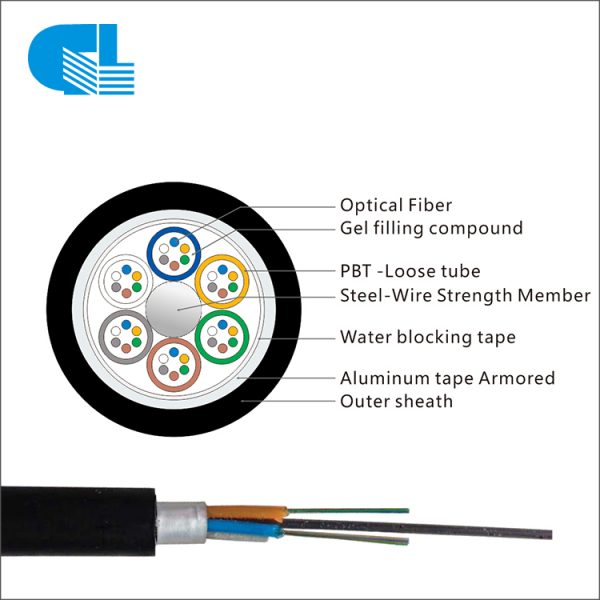

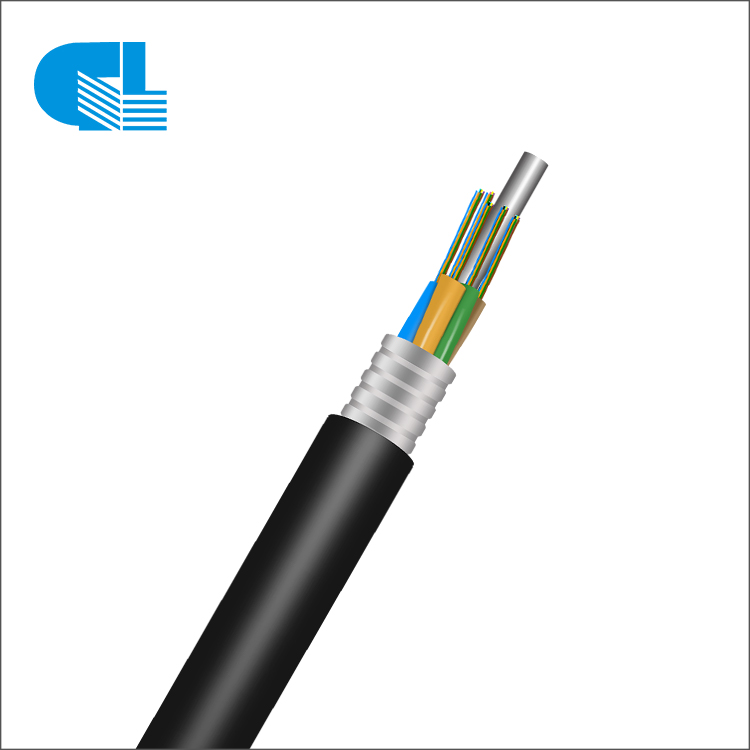

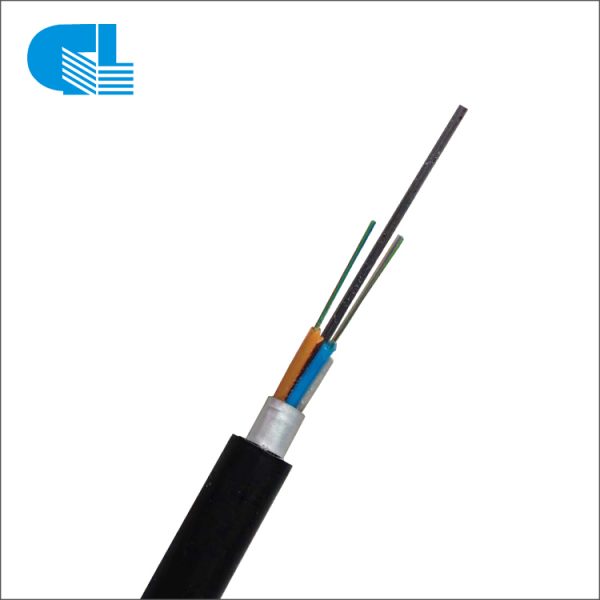

Wholesale Outdoor Fiber Optic Termination Box - GYTA Stranded Loose Tube Cable with Aluminum – GL Technology Detail:

Application:

Aerial/Duct/Outdoor

Characteristic:

1,The following measures are taken to ensure the water blocking performance of the cable.
2,Single steel wire used as the central strength member.
3,Special water-blocking filling compound in the loose tube.
4,100% cable core filling.

Temperature Rage:

Operating :-40℃ to +70℃
Storage :-40℃ to +70℃

Standards:

Comply with standard YD/T 901-2009 as well as IEC 60794-1
Specification

Technical Parameters:
  Cable Type             (increased by 2fibers) Fiber Count Cable Diameter (mm) Cable Weight (kg/km) Tensile Strength Long/Short Term(N) Crush Resistance Long/Short Term (N/100mm) Bending RadiusStatic/Dynamic (mm)
GYTA 2 ~ 30 2 ~ 30 9.5 80 600/1500 300/1000 10D/20D
GYTA 32 ~ 36 32 ~ 36 9.7 97 600/1500 300/1000 10D/20D
GYTA 38 ~60 38 ~60 10.5 109 600/1500 300/1000 10D/20D
GYTA 62 ~72 62 ~72 11.5 126 600/1500 300/1000 10D/20D
GYTA 74 ~96 74 ~96 13.2 153 600/1500 300/1000 10D/20D
GYTA 98 ~120 98 ~120 14.6 182 600/2000 300/1000 10D/20D
GYTA 122 ~ 144 122 ~ 144 16.5 221 600/2500 300/1000 10D/20D
GYTA 146 ~ 216 146 ~ 288 16.5 221 600/2500 300/1000 10D/20D
Noted:

1,Only a part of Aerial/Duct/Direct Buried/Underground/Armoured cables are listed in the table. Cables with other specifications can be inquired.
2,Cables can be supplied with a range of single mode or multimode fibers.
3,Specially designed Cable structure is available on request.
