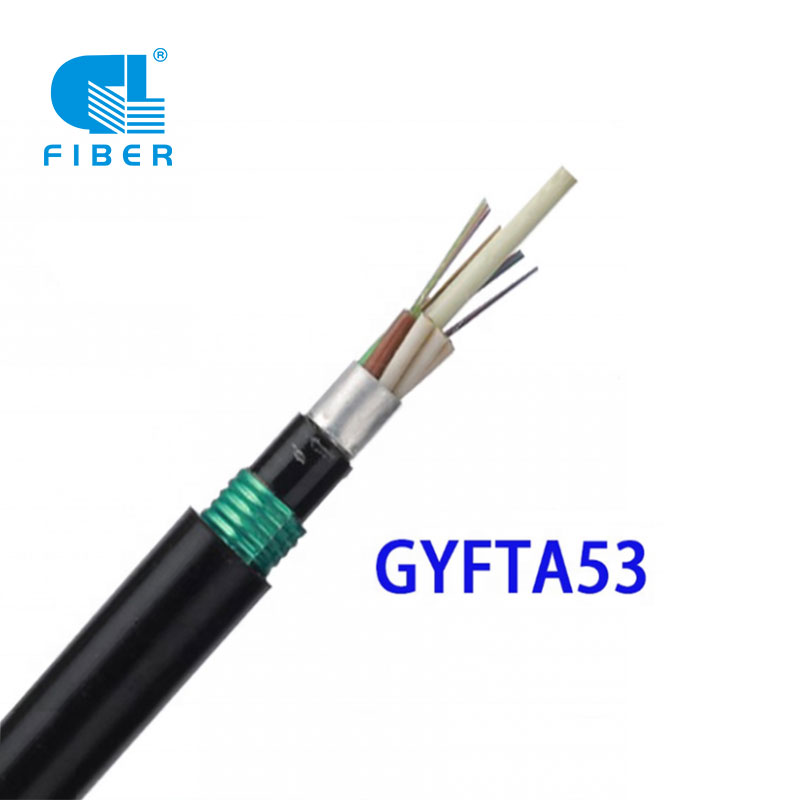

Li-jackets tse Habeli tse Armored Direct tse Chesitsoeng Fiber Optic cable GYFTA53

Li-tubes tse hlephileng li entsoe ka li-plastiki tsa modulus tse phahameng (PBT) 'me li tlatsitsoe ka gel e thibelang metsi. Li-tubes tse hlephileng li pota-potiloe ho pota-potile setho sa matla a bohareng a FRP, cable core e tlatsitsoe ka motsoako oa ho tlatsa cable. Theipi e entsoeng ka masenke ea aluminium e menahaneng le polyethylene (PE) e fetisoa joalo ka sheath e kahare, ebe likhoele tse ruruhileng tsa metsi le teipi ea masenke e sebelisoa ka nako e telele holim'a sheath e ka hare, 'me e kopantsoe le sheath ea PE e tšoarellang.

Lebitso la Sehlahisoa: GYFTA53 (Habeli Armored, Double Sheath, Stranded Loose Tube Cable)

Kopo:

1. Ho kenngoa ka ho toba ka ho patoa

2. Ho kenya kotopo

3. Marang-rang a mokokotlo le marang-rang a metro

Re romelle lengolo-tsoibila Bula Whats App

Tlhaloso

Sephutheloana & Thomello

Fektheri Show

Siea Maikutlo a Hao

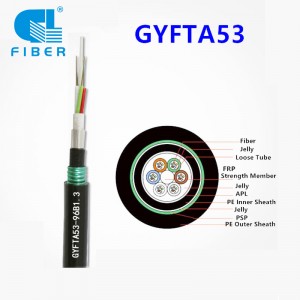

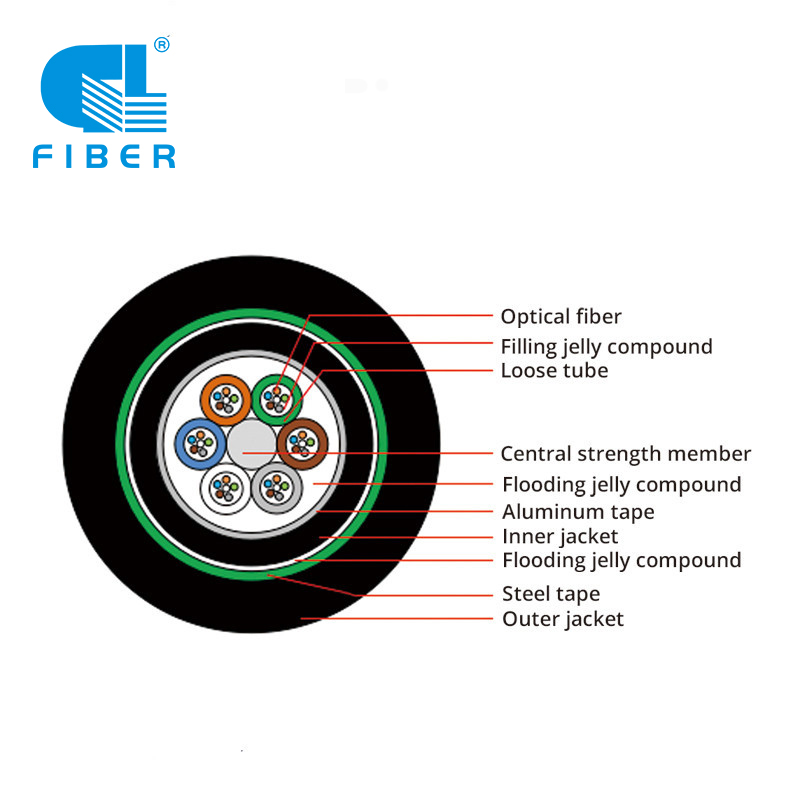

Moralo oa Sebopeho:

Sebopeho:

Setho sa matla a bohareng: lisebelisoa tsa tšepe tse fumanehang
Lose tube: PP kapa lisebelisoa tse ling tse fumanehang
Lisebelisoa tse thibelang metsi bakeng sa tube e hlephileng: khoele e thibelang metsi e fumaneha
Lisebelisoa tsa ho thibela metsi bakeng sa cable core: tepi e thibelang metsi e fumaneha
Sheath ea ka ntle: PE, lihlomo tsa theipi ea aluminium, thepa e thibelang mohloa kapa lisebelisoa tse thibelang lelakabe li fumaneha

Kopo:

Ho kenngoa ka ho toba
Ho kenya kotopo
Marang-rang a mokokotlo le marang-rang a metro

Sebopeho:

Karolo eohle e thibelang metsi
Khanyetso e phahameng ea ho senya
Phetiso e babatsehang, ts'ebetso ea mechine le ea tikoloho
Ho kenya habonolo, tlhokomelo e bonolo
Nako ea bophelo ho feta lilemo tse 30

Ts'ebetso ea ho kenya:

Min. bend radius: ho kenya 25D, ts'ebetso ea 12.5D
Mefuta ea mocheso: polokelo -40～+70℃, ho kenya -30～+70℃, ts'ebetso -40～+70℃

Litlhaloso tsa Fiber ea Optical:

		50/125µm	62.5/125µm	G.652	G.655
Ho fokotseha (+20°C)	@850nm	≤3.0dB/km	≤3.3dB/km
	@1300nm	≤1.0dB/km	≤ 1.0dB/km
	@1310nm			≤0.36dB/km	≤0.4dB/km
	@1550nm			≤0.22dB/km	≤0.23dB/km
Bophahamo ba motlakase (Sehlopha sa A)	@850nm	≥ 500MHz.km	≥ 200MHz.km
	@1300nm	≥ 1000MHz.km	≥ 600MHz.km
Sekoti sa Numere		0.200 ±0.015NA	0.275 ±0.015NA
Cable Cut-off Wavelength λcc				≤ 1260nm	≤ 1450nm

Litekanyetso tsa Tekheniki(Boleng bo Tloaelehileng):

Palo ea Fiber	Sebopeho	Diameter(mm)	Boima (kg/km)	Tensile(N)Nako e khuts'oane ea nako e telele		Silakanya(N)Nako e khuts'oane ea nako e telele		Radius e Kobehang(mm)Static Dynamic
2-30	1+6	13.8	176	1000	3000	1000	3000	12.5D	25D
32-36	1+6	13.8	176	1000	3000	1000	3000	12.5D	25D
38-60	1+6	14.7	198	1000	3000	1000	3000	12.5D	25D
62-72	1+6	14.8	199	1000	3000	1000	3000	12.5D	25D
74-84	1+7	15. 2	212	1000	3000	1000	3000	12.5D	25D
86-96	1+8	16. 1	233	1000	3000	1000	3000	12.5D	25D
98-108	1+9	17. 0	257	1000	3000	1000	3000	12.5D	25D
110-120	1+10	17. 7	278	1000	3000	1000	3000	12.5D	25D
122-132	1+11	18. 5	304	1000	3000	1000	3000	12.5D	25D
134-144	1+12	19. 2	326	1000	3000	1000	3000	12.5D	25D

Hlokomela:

1.D e bua ka bophara ba cable;
2.Li-Parameters tse amehang tsa tekheniki li ka fetoloa ho latela litlhoko tsa moreki;
3. Tsela ea metsi a block e ka fetoloa ho latela litlhoko tsa moreki;
4.The design flame resistance,anti-rodent, termite resistant cable ho ya ka ditlhoko tsa moreki.

Ngola molaetsa wa hao mona mme o re romele wona

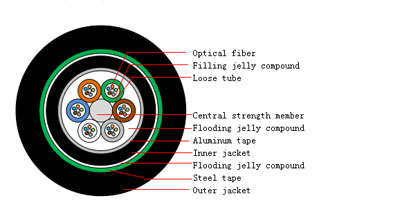

Moralo oa Sebopeho:

Sebopeho:

Setho sa matla a bohareng: lisebelisoa tsa tšepe tse fumanehang
Lose tube: PP kapa lisebelisoa tse ling tse fumanehang
Lisebelisoa tse thibelang metsi bakeng sa tube e hlephileng: khoele e thibelang metsi e fumaneha
Lisebelisoa tsa ho thibela metsi bakeng sa cable core: tepi e thibelang metsi e fumaneha
Sheath ea ka ntle: PE, lihlomo tsa theipi ea aluminium, thepa e thibelang mohloa kapa lisebelisoa tse thibelang lelakabe li fumaneha

Kopo:

Ho kenngoa ka ho toba
Ho kenya kotopo
Marang-rang a mokokotlo le marang-rang a metro

Sebopeho:

Karolo eohle e thibelang metsi
Khanyetso e phahameng ea ho senya
Phetiso e babatsehang, ts'ebetso ea mechine le ea tikoloho
Ho kenya habonolo, tlhokomelo e bonolo
Nako ea bophelo ho feta lilemo tse 30

Ts'ebetso ea ho kenya:

Min. bend radius: ho kenya 25D, ts'ebetso ea 12.5D
Mefuta ea mocheso: polokelo -40～+70℃, ho kenya -30～+70℃, ts'ebetso -40～+70℃

Litlhaloso tsa Fiber ea Optical:

		50/125µm	62.5/125µm	G.652	G.655
Ho fokotseha (+20°C)	@850nm	≤3.0dB/km	≤3.3dB/km
	@1300nm	≤1.0dB/km	≤ 1.0dB/km
	@1310nm			≤0.36dB/km	≤0.4dB/km
	@1550nm			≤0.22dB/km	≤0.23dB/km
Bophahamo ba motlakase (Sehlopha sa A)	@850nm	≥ 500MHz.km	≥ 200MHz.km
	@1300nm	≥ 1000MHz.km	≥ 600MHz.km
Sekoti sa Numere		0.200 ±0.015NA	0.275 ±0.015NA
Cable Cut-off Wavelength λcc				≤ 1260nm	≤ 1450nm

Litekanyetso tsa Tekheniki(Boleng bo Tloaelehileng):

Palo ea Fiber	Sebopeho	Diameter(mm)	Boima (kg/km)	Tensile(N)Nako e khuts'oane ea nako e telele		Silakanya(N)Nako e khuts'oane ea nako e telele		Radius e Kobehang(mm)Static Dynamic
2-30	1+6	13.8	176	1000	3000	1000	3000	12.5D	25D
32-36	1+6	13.8	176	1000	3000	1000	3000	12.5D	25D
38-60	1+6	14.7	198	1000	3000	1000	3000	12.5D	25D
62-72	1+6	14.8	199	1000	3000	1000	3000	12.5D	25D
74-84	1+7	15. 2	212	1000	3000	1000	3000	12.5D	25D
86-96	1+8	16. 1	233	1000	3000	1000	3000	12.5D	25D
98-108	1+9	17. 0	257	1000	3000	1000	3000	12.5D	25D
110-120	1+10	17. 7	278	1000	3000	1000	3000	12.5D	25D
122-132	1+11	18. 5	304	1000	3000	1000	3000	12.5D	25D
134-144	1+12	19. 2	326	1000	3000	1000	3000	12.5D	25D

Hlokomela:

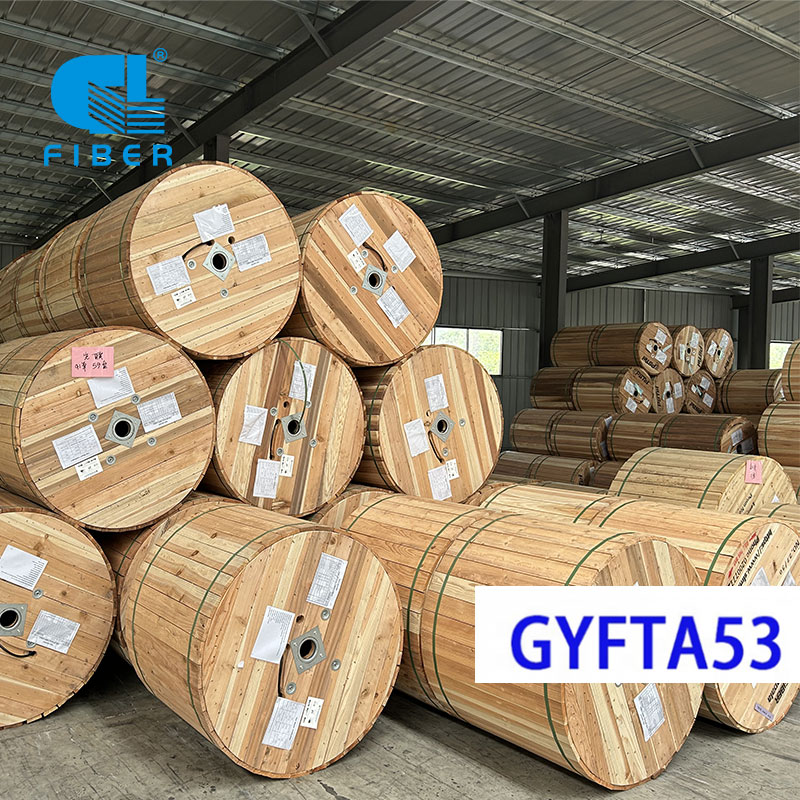

Thepa ea ho paka:

Moropa oa lehong o sa khutlisetsoeng.
Lipheletso ka bobeli tsa likhoele tsa fiber optic li tlameletsoe ka mokhoa o sireletsehileng moqomong 'me li tiisitsoe ka kepisi e honyehang ho thibela ho kenella ha mongobo.
• Bolelele bo bong le bo bong ba thapo bo tla kengoa hape Moqomong oa Lehong o Fumigated
• E koahetsoe ka pampiri ea polasetiki
• E tiisitsoe ka li-battens tse matla tsa lehong
• Bonyane 1 m ea ntlha e ka hare ea thapo e tla bolokeloa tlhahlobo.
• Bolelele ba moropa: Bolelele ba moropa bo tloaelehileng ke 3,000m±2%;

Khatiso ea thapo:

Nomoro e latellanang ea bolelele ba thapo e tla tšoauoa ka har'a sheath e ka ntle ea thapo ka nako ea 1meter ± 1%.

Lintlha tse latelang li tla tšoauoa ka sheath e ka ntle ea thapo ka nako e ka bang mithara e le 'ngoe.

1. Mofuta oa cable le palo ea fiber optical
2. Lebitso la moetsi
3. Khoeli le Selemo sa Tlhahiso
4. Bolelele ba cable

Ho tšoaea meropa:

Lehlakore le leng le le leng la moqomo o mong le o mong oa lepolanka le tla tšoauoa ka ho sa feleng ka mongolo o phahameng oa 2.5 ~ 3 cm ka tse latelang:

1. Lebitso la tlhahiso le logo
2. Bolelele ba cable
3.Mefuta ea likhoele tsa fiberle palo ea likhoele, joalo-joalo
4. Tsela
5. Boima ba boima ba 'mele

Tlhokomeliso: Lithapo li kentsoe ka har'a mabokose, li phuthetsoe holim'a Bakelite & drum ea tšepe. Nakong ea lipalangoang, lisebelisoa tse nepahetseng li lokela ho sebelisoa ho qoba ho senya sephutheloana le ho sebetsana habonolo. Lithapo li lokela ho sireletsoa mongobong, li bolokoe hole le mocheso o phahameng le litlhase tsa mollo, li sirelelitsoe hore li se ke tsa kobeha le ho pshatleha, li sirelelitsoe khatellong ea maikutlo le tšenyo ea mochini.
