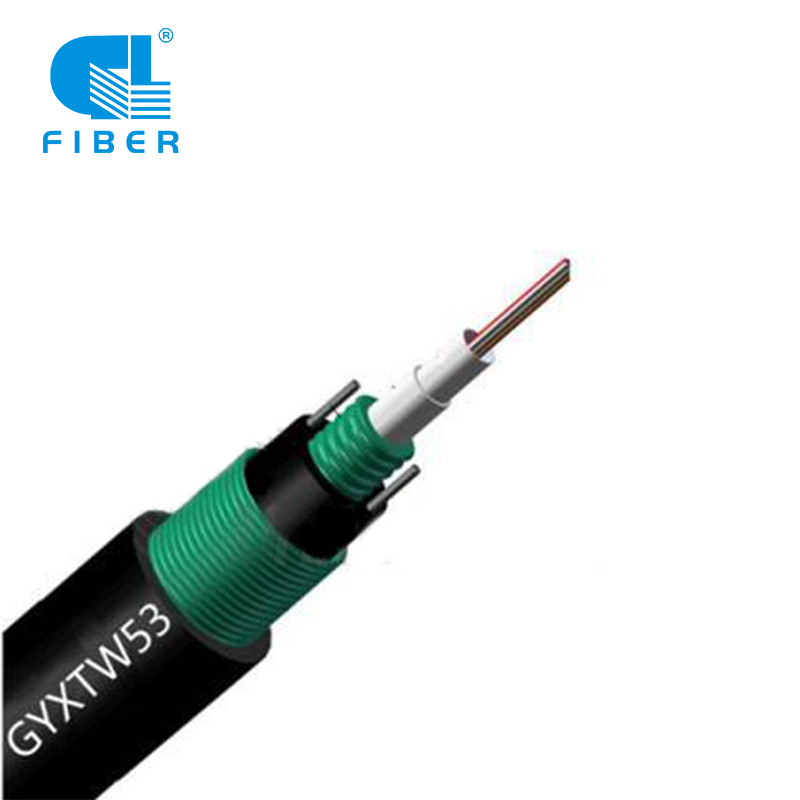

GYXTW53 Armored Double Sheathed Central ityhubhu Loose

I-GYXTW53 intambo yefiber optical luhlobo oluzixhasayo lwentambo yasemoyeni idibanisa i-fiber optic enobubanzi obuyi-250μm kunye ne-fiber count esukela kwi-2 cores ukuya kwi-12 cores ngaphakathi kwityhubhu ekhululekile eyenziwe ngezinto eziphezulu zemodulus. I-tube evulekileyo igcwele i-compound engangeni manzi, kwaye ingaphandle yayo iphinda iphathwe ukuze ithintele ukungena kwamanzi kwintambo ye-fiber optic. Kukho iFRP enxuseneyo kwicala ngalinye, egqunywe ngePVC ukwenza iintambo. Uyilo lwetyhubhu evulekileyo luluncedo kwiingxaki ezinde zolawulo oluchanekileyo lwefiber optic.

Inani le-GYXTW53 optical fiber cable cores lincinci, lidla ngokuba ngaphantsi kwe-12 cores, okwangoku linokufikelela kuma-24 cores.

Thumela i-imeyile kuthi Vula iWhatsapp

Inkcazo

Ukupakishwa kunye nokuThunyelwa

Umboniso womzi-mveliso

Shiya Impendulo Yakho

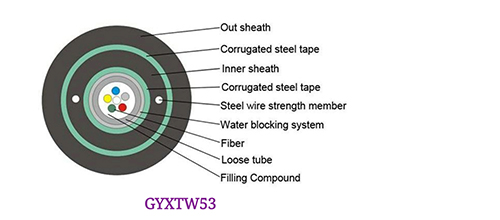

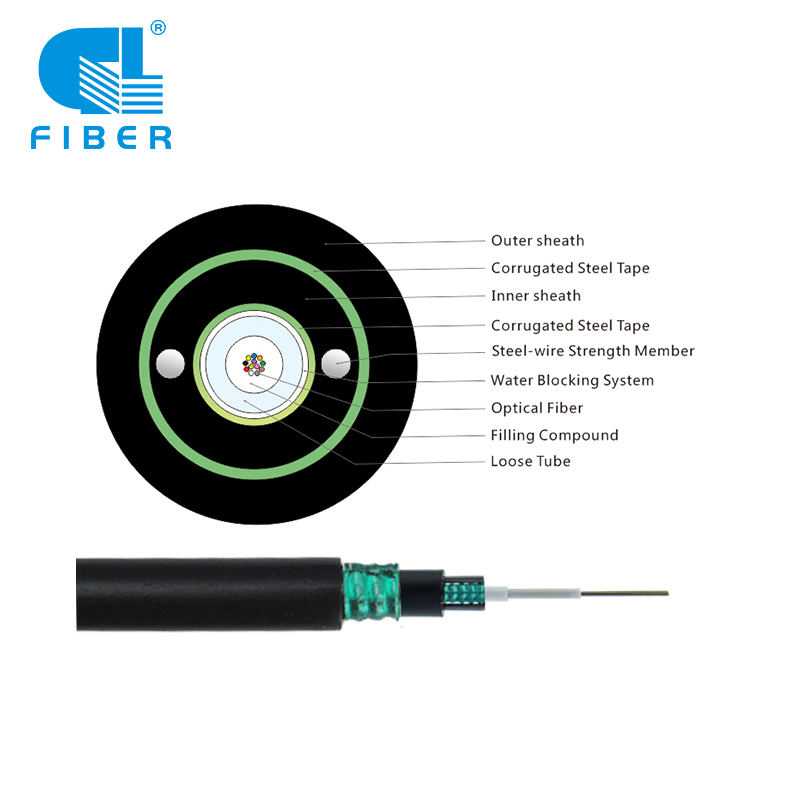

Uyilo lweCandelo leCable:

Isicelo:

Yamkelwe kukuhanjiswa kwangaphandle.
Ifanelekile kwi-air duct kunye nendlela yokungcwaba.
Umgama omde kunye nonxibelelwano lwenethiwekhi yendawo yendawo.

Iimpawu:

1. Steel-wire parallel member.filler khusela ityhubhu fibre steel tape amored.
2. Ukusebenza kakuhle koomatshini kunye nokusingqongileyo.
3. Isakhiwo esincinci. ubunzima obulula.
4. inokufakwa ngokulula kwaye iqhutywe ngokulula.

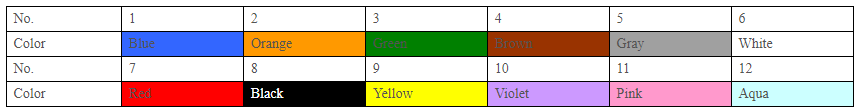

Imibala yeFayibha:

Imibala yeMibhobho eLose:

Ukucaciswa kweFayibha yamehlo:

Imowudi enye ifayibha yokukhanya (ITU-T Rec. G.652.D)

Into	Inkcazo
Uhlobo lweFayibha	Imowudi enye
Izinto zeFayibha	I-silica edibeneyo
I-coefficient yokunciphisa@ 1310 nm@ 1383 nm@ 1550 nm@ 1625 nm	≤ 0.35 dB/km≤0.32 dB/km≤ 0.21 dB/km≤ 0.24 dB/km
Inqaku lokuyeka	≤ 0.05 dB
Ikhebula esisikelelweyo ubude bobude	≤ 1260 nm
Ubude obungange-dispersion waveleng	1300 ~ 1324 nm
Ithambeka le-Zero-dispersion	≤ 0.092 ps/(nm².km)
Ukusasazwa kweChromatic@ 1288 ~ 1339 nm@ 1271 ~ 1360 nm@ 1550 nm@ 1625 nm	≤3.5 ps/(nm. km)≤5.3 ps/(nm. km)≤18 ps/(nm. km)≤22 ps/(nm. km)
PMD_Q(Umndilili wequadrature*)	≤0.2 ps/km^1/2
Imowudi yentsimi yedayamitha @ 1310 nm	9.2±0.4 um
Undoqo / impazamo yoxinaniso	≤ 0.5 um
Idayamitha yokugquma	125.0 ± 0.7 um
Ukugquma okungeyo-circularity	≤1.0%
Idayamitha yokuqala yokwaleka	245 ± 10 um
Inqanaba lovavanyo lobungqina	100 kpsi (=0.69 GPA), 1%
Ukuxhomekeka kobushushu0oC~ +70oC @ 1310 & 1550nm	≤ 0.1 dB/km

Ukucaciswa kwentambo:

Ukubala kweCable	Isingxobo sangaphandle Ububanzi(MM)	Ubunzima (KG/Km)	Ubuncinane obuvumelekileyo Amandla okuqina (N)		ubuncinane obuvumelekileyo Umthwalo wokutyumza (N/100mm)		Ubuncinci bokugoba Irediyasi(MM)		Ugcino ubushushu (℃)
Ukubala kweCable	Isingxobo sangaphandle Ububanzi(MM)	Ubunzima (KG/Km)	ixesha elifutshane	ixesha elide	ixesha elifutshane	ixesha elide	ixesha elifutshane	ixesha elide	Ugcino ubushushu (℃)
2	12.0	165.00	3000	1000	1500	500	20D	10D	-40+60
4	12.0	165.00	3000	1000	1500	500	20D	10D	-40+60
6	12.0	165.00	3000	1000	1500	500	20D	10D	-40+60
8	12.0	165.00	3000	1000	1500	500	20D	10D	-40+60
10	12.0	165.00	3000	1000	1500	500	20D	10D	-40+60
12	12.0	165.00	3000	1000	1500	500	20D	10D	-40+60
24	12.0	165.00	3000	1000	1500	500	20D	10D	-40+60

Bhala umyalezo wakho apha kwaye uwuthumele kuthi

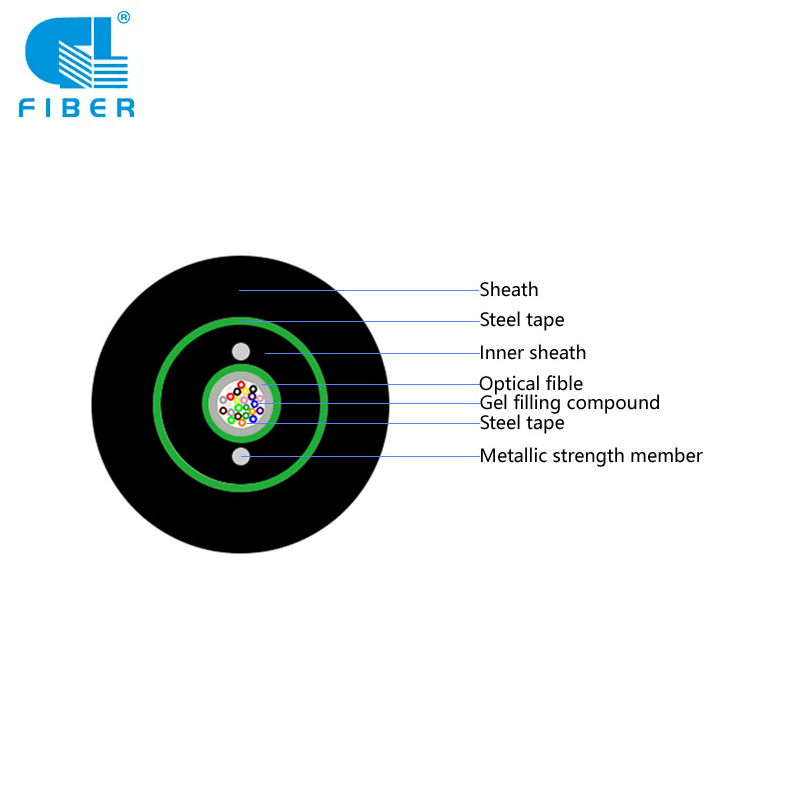

Uyilo lweCandelo leCable:

Isicelo:

Yamkelwe kukuhanjiswa kwangaphandle.
Ifanelekile kwi-air duct kunye nendlela yokungcwaba.
Umgama omde kunye nonxibelelwano lwenethiwekhi yendawo yendawo.

Iimpawu:

Imibala yeFayibha:

Imibala yeMibhobho eLose:

Ukucaciswa kweFayibha yamehlo:

Imowudi enye ifayibha yokukhanya (ITU-T Rec. G.652.D)

Into	Inkcazo
Uhlobo lweFayibha	Imowudi enye
Izinto zeFayibha	I-silica edibeneyo
I-coefficient yokunciphisa@ 1310 nm@ 1383 nm@ 1550 nm@ 1625 nm	≤ 0.35 dB/km≤0.32 dB/km≤ 0.21 dB/km≤ 0.24 dB/km
Inqaku lokuyeka	≤ 0.05 dB
Ikhebula esisikelelweyo ubude bobude	≤ 1260 nm
Ubude obungange-dispersion waveleng	1300 ~ 1324 nm
Ithambeka le-Zero-dispersion	≤ 0.092 ps/(nm².km)
Ukusasazwa kweChromatic@ 1288 ~ 1339 nm@ 1271 ~ 1360 nm@ 1550 nm@ 1625 nm	≤3.5 ps/(nm. km)≤5.3 ps/(nm. km)≤18 ps/(nm. km)≤22 ps/(nm. km)
PMD_Q(Umndilili wequadrature*)	≤0.2 ps/km^1/2
Imowudi yentsimi yedayamitha @ 1310 nm	9.2±0.4 um
Undoqo / impazamo yoxinaniso	≤ 0.5 um
Idayamitha yokugquma	125.0 ± 0.7 um
Ukugquma okungeyo-circularity	≤1.0%
Idayamitha yokuqala yokwaleka	245 ± 10 um
Inqanaba lovavanyo lobungqina	100 kpsi (=0.69 GPA), 1%
Ukuxhomekeka kobushushu0oC~ +70oC @ 1310 & 1550nm	≤ 0.1 dB/km

Ukucaciswa kwentambo:

Ukubala kweCable	Isingxobo sangaphandle Ububanzi(MM)	Ubunzima (KG/Km)	Ubuncinane obuvumelekileyo Amandla okuqina (N)		ubuncinane obuvumelekileyo Umthwalo wokutyumza (N/100mm)		Ubuncinci bokugoba Irediyasi(MM)		Ugcino ubushushu (℃)
Ukubala kweCable	Isingxobo sangaphandle Ububanzi(MM)	Ubunzima (KG/Km)	ixesha elifutshane	ixesha elide	ixesha elifutshane	ixesha elide	ixesha elifutshane	ixesha elide	Ugcino ubushushu (℃)
2	12.0	165.00	3000	1000	1500	500	20D	10D	-40+60
4	12.0	165.00	3000	1000	1500	500	20D	10D	-40+60
6	12.0	165.00	3000	1000	1500	500	20D	10D	-40+60
8	12.0	165.00	3000	1000	1500	500	20D	10D	-40+60
10	12.0	165.00	3000	1000	1500	500	20D	10D	-40+60
12	12.0	165.00	3000	1000	1500	500	20D	10D	-40+60
24	12.0	165.00	3000	1000	1500	500	20D	10D	-40+60

Izinto zokuPakisha:

Igubu leplanga elingabuyiswayo.
Zombini iziphelo zeentambo zefiber optic zibotshelelwe ngokukhuselekileyo kwigubu kwaye zitywinwe ngekepusi eshwabeneyo ukuthintela ukungena kokufuma.
• Ubude obunye bentambo nganye buya kujikelezwa kwakhona kwiGubu leMithi eFumiweyo
• Igqunywe ngeplastiki yesithinteli
• Ukutywinwa ngeentsimbi zomthi ezinamandla
• Ubuncinci i-1 m yesiphelo sangaphakathi sentambo iya kugcinelwa uvavanyo.
• Ubude begubu: Ubude begubu eliqhelekileyo yi-3,000m±2%;

Ukuprintwa kwentambo:

Inani elilandelelanayo lobude bentambo liya kuphawulwa kwisingxobo sangaphandle sentambo kwisithuba semitha e-1 ± 1%.

Olu lwazi lulandelayo luya kuphawulwa kwi-sheath yangaphandle yentambo kwisithuba esimalunga nemitha e-1.

1. Uhlobo lwekhebula kunye nenani lefiber optical
2. Igama lomenzi
3. Inyanga kunye noNyaka woMveliso
4. Ubude bekhebula

Ukumakishwa kwegubu:

Icala ngalinye lomgqomo wamaplanga liya kumakishwa ngokusisigxina ubuncinane be-2.5 ~ 3 cm ubude bonobumba ngokulandelayo:

1. Igama lokwenziwa kunye nelogo
2. Ubude bekhebula
3.Iintlobo zeentambo zeFayibhakunye nenani lemicunjl
4. Indlela yokuqengqeleka
5. Ubunzima obupheleleyo kunye nenetha

Izibuko:
Shanghai/Guangzhou/Shenzhen

Ixesha lokukhokhela:

Ubungakanani(KM)	1-300	≥300
Ixesha eliqikelelweyo(Iintsuku)	15	Ukuzalelwa!

Qaphela:Umgangatho wokuPakisha kunye neenkcukacha ezingentla ziqikelelwa kwaye ubungakanani bokugqibela kunye nobunzima buya kuqinisekiswa ngaphambi kokuthunyelwa.

Phawula: Iintambo zipakishwe kwibhokisi, zibhijelwe kwi-Bakelite kunye negubu lentsimbi. Ngexesha lokuthutha, izixhobo ezifanelekileyo kufuneka zisetyenziswe ukuphepha ukonakalisa iphakheji kunye nokuphatha ngokulula. Iintambo kufuneka zikhuselwe kubumanzi, zigcinwe kude nobushushu obuphezulu kunye neentlantsi zomlilo, zikhuselwe ekugobeni nasekutyunyuzweni, zikhuselwe kuxinzelelo lomatshini kunye nomonakalo.
