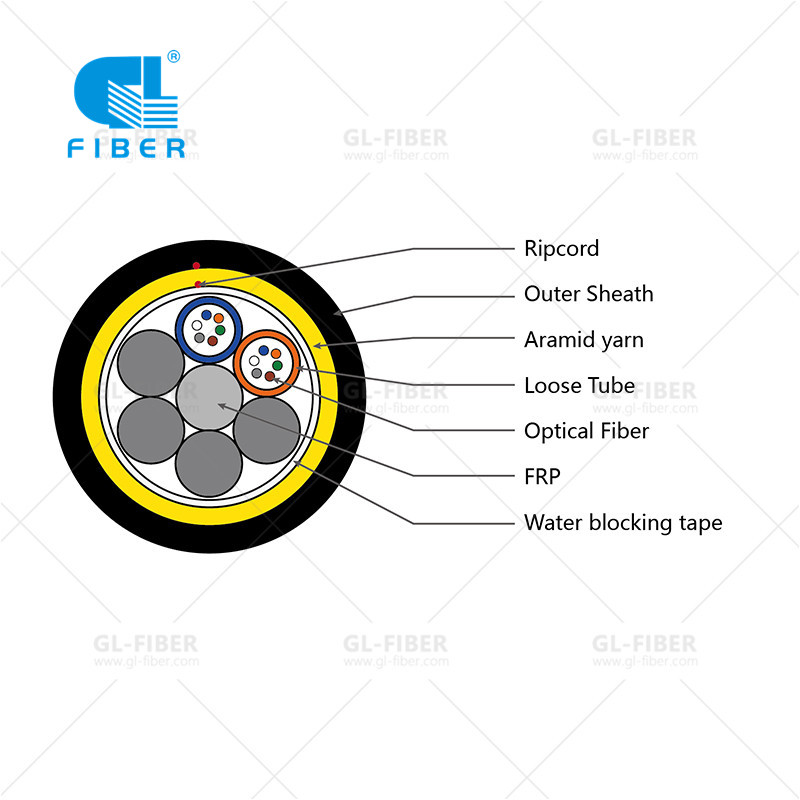

ADSS Nikan Jacket All-Dielectric Self-Supporting Fiber optic USB jẹ imọran fun fifi sori ẹrọ ni pinpin bi daradara bi awọn fifi sori ẹrọ envirline gbigbe ni a nilo bi orukọ rẹ ṣe tọka, ko si atilẹyin tabi okun waya ojiṣẹ ti o nilo, nitorinaa fifi sori ẹrọ ti waye ni igbasilẹ kan ṣoṣo.Structural Awọn ẹya ara ẹrọ: Layer ẹyọkan, Titọpa tube ti ko nii, ọmọ ẹgbẹ ti ko ni agbara, Idaji omi-idaji gbigbẹ, ọmọ ẹgbẹ okun Aramid, jaketi ita PE. Pẹlu 2 mojuto, mojuto 4, 6 mojuto, 8 mojuto, 12 mojuto, 16 mojuto, 24 mojuto, 36 mojuto, 48 mojuto, 96 mojuto, to 144 mojuto.
2-144 Awọn Jakẹti Ẹyọ Kanṣoṣo ADSS Awọn Ni pato:
| Iwọn okun okun | / | 2-30 | 32-60 | 62-72 | 96 | 144 |
| Ilana | / | 1+5 | 1+5 | 1+6 | 1+8 | 1+12 |
| Okun ara | / | G.652D |
| Central agbara egbe | ohun elo | mm | FRP |
| Opin (apapọ) | 1.5 | 1.5 | 2.1 | 2.1 | 2.1 |
| Tube alaimuṣinṣin | Ohun elo | mm | PBT |
| Opin (apapọ) | 1.8 | 2.1 | 2.1 | 2.1 | 2.1 |
| Sisanra(apapọ) | 0.32 | 0.35 | 0.35 | 0.35 | 0.35 |
| Max okun / loose tube | 6 | 12 | 12 | 12 | 12 |
| Awọn tubes awọ | Idanimọ awọ kikun |
| Okun excess ipari | % | 0.7 ~ 0.8 |
| Omi resistance | Ohun elo | / | Cable jelly + omi sooro Layer |
| Non-ti fadaka teramo irinše | Ohun elo | / | Aramid owu |
| Afẹfẹ ita | ohun elo | mm | MDPE |
| Afẹfẹ ita | 1.8mm |
| Iwọn ila opin okun (apapọ) | mm | 9.6 | 10.2 | 10.8 | 12.1 | 15 |
| Iwọn okun USB (Isunmọ) | kg/km | 70 | 80 | 90 | 105 | 125 |
| Cable Sectional agbegbe | mm2 | 72.38 | 81.72 | 91.61 | 115 | 176.7 |
| olùsọdipúpọ̀ (Max) | 1310nm | dB/km | 0.35 |
| 1550nm | 0.21 |
| Ti won won Agbara Fifẹ (RTS) | kn | 5.8 |
| Iṣoro ti a gba laaye julọ (MAT) | kn | 2.2 |
| Apapọ ẹdọfu iṣiṣẹ (EDS) | kn | 3.0 |
| modulus ọdọ | kn/mm2 | 7.6 |
| olùsọdipúpọ ti gbona imugboroosi | 10-6/℃ | 9.3 |
| Itoju fifun pa | Igba pipẹ | N/100mm | 1100 |
| Igba kukuru | 2200 |
| Igbanilaaye Bent Radius | aimi | mm | 15 ti OD |
| ìmúdàgba | 20 ti OD |
| Iwọn otutu | Nigba ti laying | ℃ | -20 ~ + 60 |
| Ibi ipamọ ati gbigbe | -40 ~ +70 |
| nṣiṣẹ | -40 ~ +70 |
| Dopin ti ohun elo | Dara fun ipele foliteji labẹ 110kV, iyara afẹfẹ ni isalẹ 25m/s, icing 5mm |
| USB Marks | Orukọ Ile-iṣẹ ADSS-××B1-PE-100M DL/T 788-2001 ×××M Odun
(Tabi ni ibeere onibara) |
Kini yoo ni ipa lori idiyele ADSS?
Gbogbo Dielectric Self Support ADSS Cable ti wa ni gbe lẹgbẹẹ okun agbara, nitorinaa ohun elo ti apofẹlẹfẹlẹ ita nilo lati ṣe apẹrẹ ni ibamu si foliteji. Ti o ba kọja 110KV, o nilo lati lo ohun elo AT, ati pe ti o ba kere ju 110KV, yoo lo ohun elo PE.
Iyara afẹfẹ ni aaye fifisilẹ, sisanra ti yinyin, iwọn otutu apapọ, ati akoko ti o ṣe pataki julọ (igba naa tọka si aaye laarin awọn ọpa ohun elo meji) yoo ni ipa lori agbara fifẹ ti ADSS. Ti agbara fifẹ ko ba to, okun opitika yoo rọrun lati fa kuro.
Nikẹhin, alabara yẹ ki o sọ fun nọmba awọn okun ti okun ADSS ti o nilo, ki ẹlẹrọ le ṣe apẹrẹ ADSS ni ibamu si awọn ibeere.
| Okun Iru | □ Nikan Ipo B1-G.652D-9/125mm □ Ipo Kanṣo B4-G.655 □ Multi Awoṣe A1a-50 / 125mm □ Multi Awoṣe A1b-62.5 / 125mm □ Tabi Onibara pato | |
| Awọn ohun kohun Okun | □ 2 Kokoro □ 4 Kokoro □ 6Kọ́ọ̀mù □ 8Kọ́ọ́rọ́ □ 12 Kokoro □ 24Cores □ 36Kore □ 48Kore □ 72Cores □ 96Cores □ 144Cores □ Tabi Onibara pato | |
| Igba fifi sori ẹrọ | □ 50 Mita □ 80 Mita □ 100 Mita □ 120 Mita □ 150Mita □ 200Mita □ 250Mita □ 300Mita □ 400Mita □ 600Mita □ Tabi Onibara pato | |
| O pọju. Allowable ẹdọfu | □ 4KN □ 6KN □ 9KN □ 12KN □ 15KN □ 18KN □ 19KN □ 21KN □ 24KN □ 26KN □ 27KN □ Tabi Onibara pato | |
| Afẹfẹ / Jakẹti (Awọn ohun elo) | □ PE □ AT | Iwọn foliteji: <110KV Iwọn foliteji:> 110KV |
| O pọju. Iyara Afẹfẹ | Melo Mita Fun Keji | |
| O pọju. sisanra ti yinyin agbegbe | Igba otutu Max. sisanra ti yinyin agbegbe | |
| Max., Min., Apapọ. otutu | -℃~+℃ |
